Description
Operation and Construction

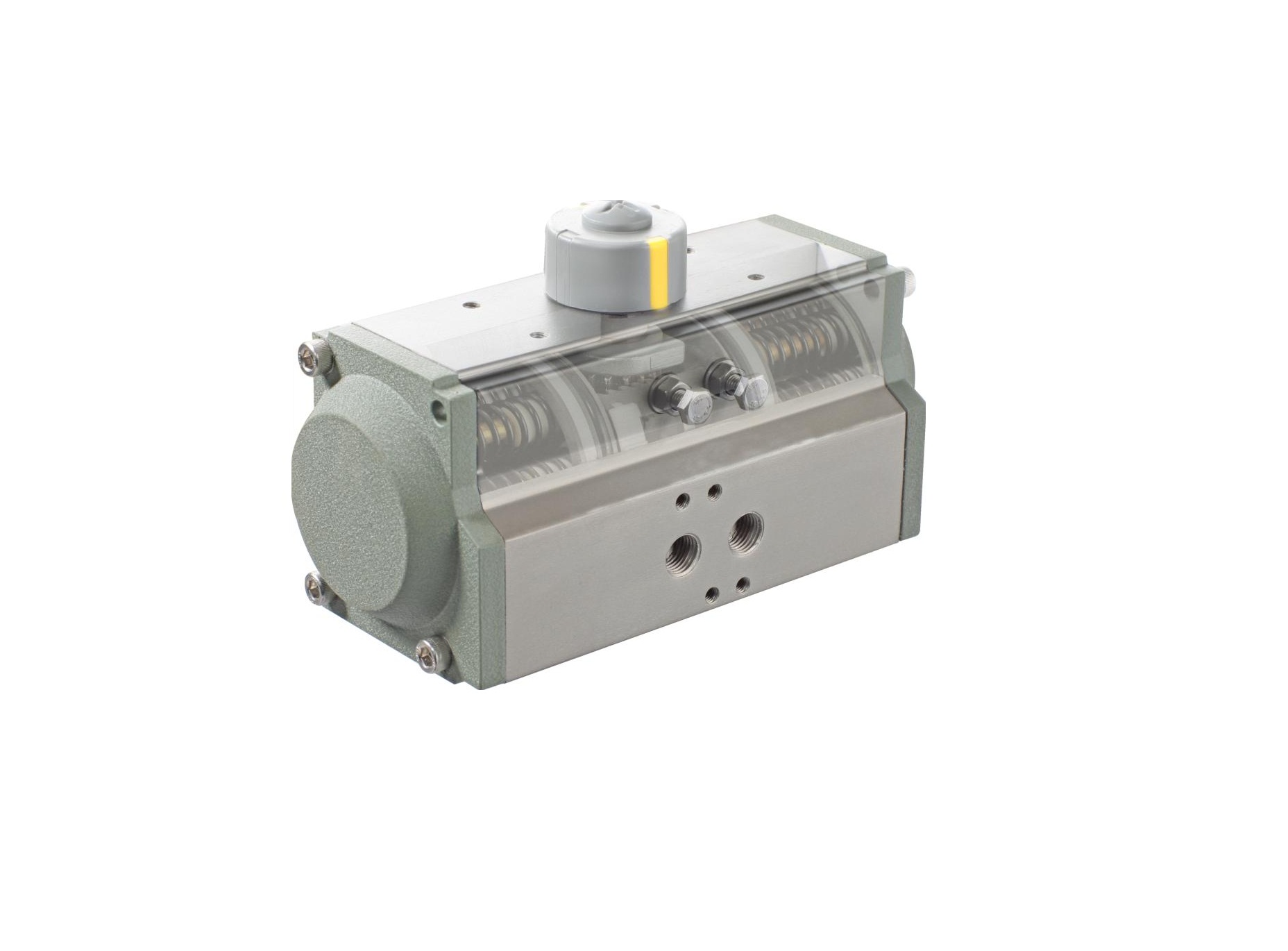

Haitima actuators are delivered as double acting (DA) as well as single acting (SR) types.
The return springs on SR type are mounted inside the actuator, and the overall size is equal for both types.
The mounting between valve and actuator is acc. to ISO 5211, and it is Namur connection for solenoid valves / limit switch boxes.
Range of applications
The actuator is designed for operating of quarter
turn valves i.e ball and butterfly valves.
Technical specification
Temperature area: -20 °C to +80 °C
Max working pressure: 10 bar
Operating supply: Clean air
Installation area: Indoor and outdoor
Materials:
Body: Extruded
aluminium
Piston: Aluminium
End pieces: Aluminium
Stem: Nickelplated Carbon Steel
Piston gaskets: Nylon 46
Spring (SR): Special steel
Single Acting. Moment nm: Mounting Flange: Square top:
HTS-052 10 F03/F05 11mm
HTS-063 18 F05/F07 14mm
HTS-083 39 F05/F07 17mm
HTS-092 60 F05/F07 17mm
HTS-105 84 F07/F10 22mm
HTS-125 141 F07/F10 22mm
HTS-140 210 F10/F12 27mm
HTS-160 312 F10/F12 27mm
HTS-190 510 F14 36mm
HTS-210 702 F14 36mm
HTS-240 1100 F16 46mm
HTS-270 1547 F16 46mm
