MAS2600

Product Description

Advantages:

  • Titanium housing and diaphragm.
  • Resistant to sea water and chemicals.
  • Silicon strain gauge sensor.
  • EMI protected.
  • Interchangeable with existing transmitters.
  • Programmable from 0.2 to 35 mH²O
  • Strong, light and extremely corrosion resistant.

Description:

The MAS 2600 tank contents transmitter is an electronic based transmitter designed for tank contents measuring application.
The MAS 2600 is a 2-wire 4-20 mA level transmitter consisting of a transducer and an amplifier connected via a 6-core vented cable.
The transducer is fully welded, housed in titanium with a titanium diaphragm and is submersible (IP68).
The amplifier is housed in a sea water-resistant polyester casing (IP56).
The transducer is a pressure sensitive silicon microstrain gauge sensor mounted in a glass to metal seal.
The sensor is protected by an isolation diaphragm, electron beam welded to the transducer housing, with an oil filling between the sensor and the diaphragm.
Pressure changes in the front of the diaphragm will bring about a resistance change in the Whetstone bridge of the transducer.
This change in the Whetstone bridge will be transmitted to the amplifier as a change in the electrical signal.
The MAS 2600 is manufactured in 4 programmable ranges from
0-3.5 mH²O to 0-35 mH²O, and available with a built-in Pt100 sensor.

Application:

The MAS2600 has been developed for level measuring in ballast, oil, service and fresh water tanks
as well as tanks containing media which are not hostile to titanium.

Type Approvals:

DNV, GL, LRS, MRS, BV, RINA, KRS, ABS, PRS.
CE marked in accordance with EU directive



More than 30.000 installations worldwide!



Normally in stock:

Sensors:

MAS2600-G20-05-0/00

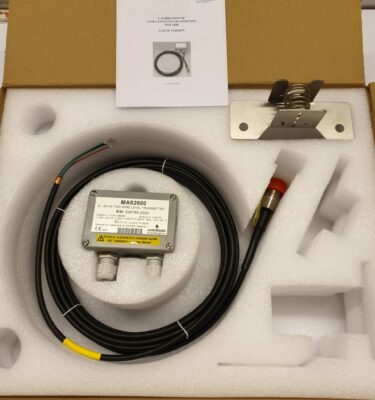

MAS2600-G20-10-0/00

MAS2600-G20-15-0/00

MAS2600-G20-20-0/00



MAS2600-G30-05-0/00

MAS2600-G30-10-0/00

MAS2600-G30-15-0/00

MAS2600-G30-20-0/00



MAS2600-G40-05-0/00

MAS2600-G40-20-0/00

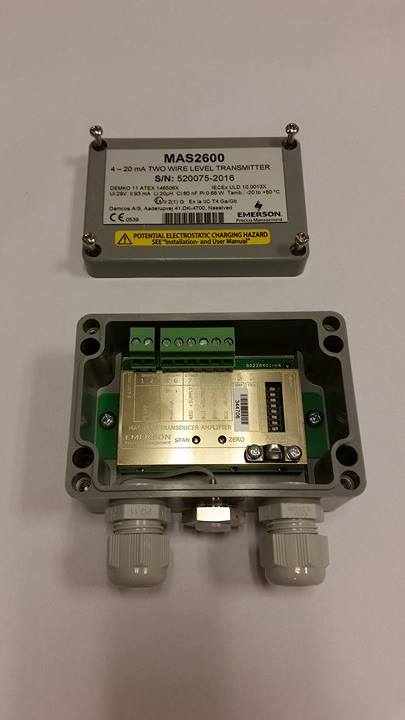

MAS2600-Box

MAS2600-Amplifier Card



Mounting equipment:

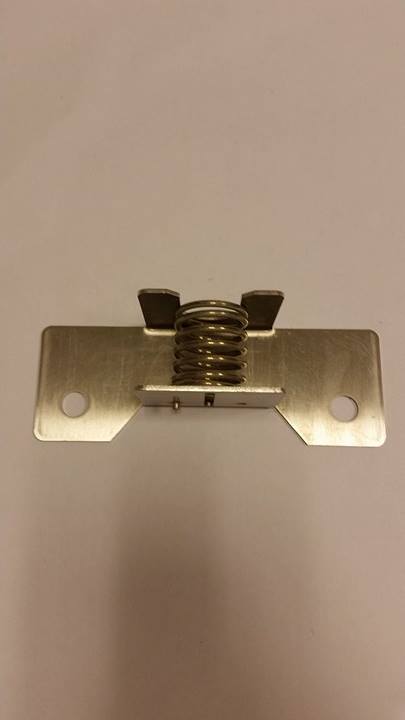

Internal Bracket

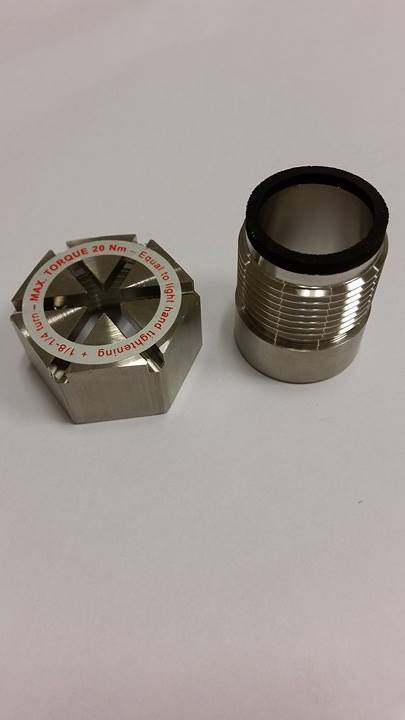

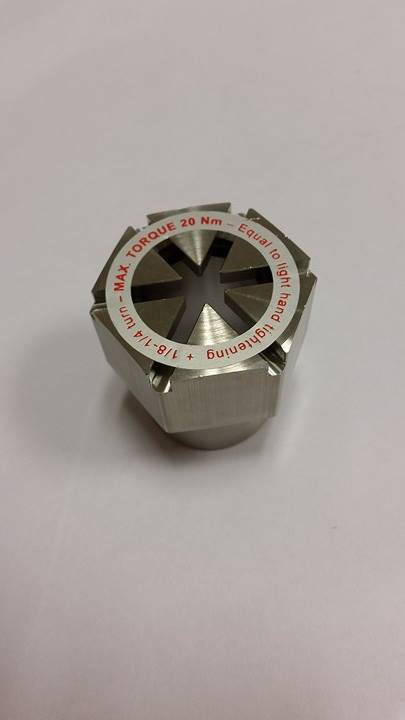

Pole End

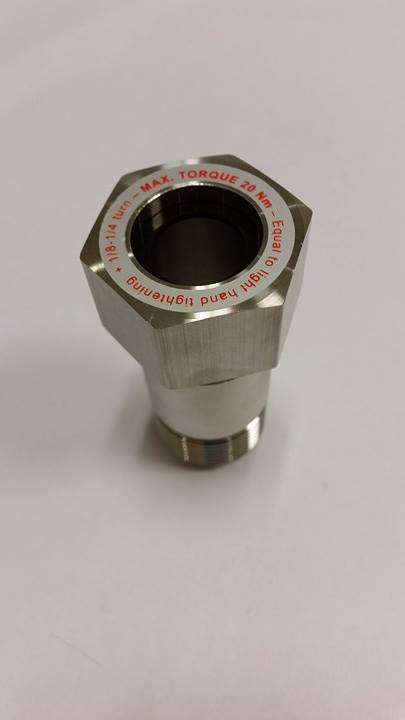

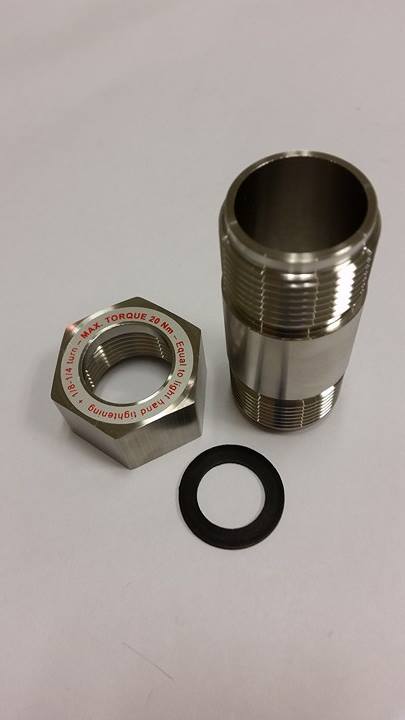

Pipe End

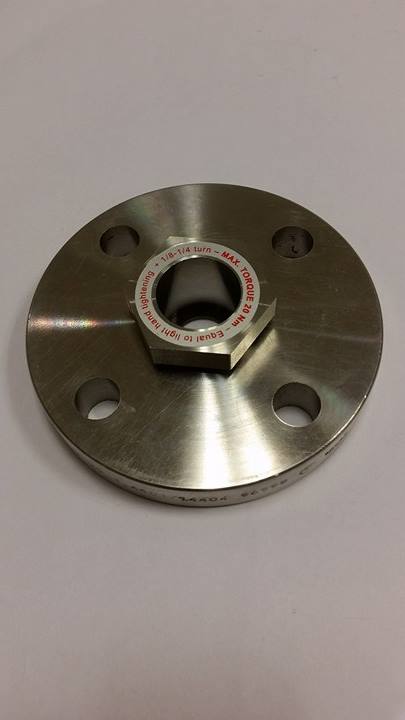

DN25 Flange

DN40 Flange

DN50 Flange
