MF52024DC-M

MF52024DC-M

Product Description

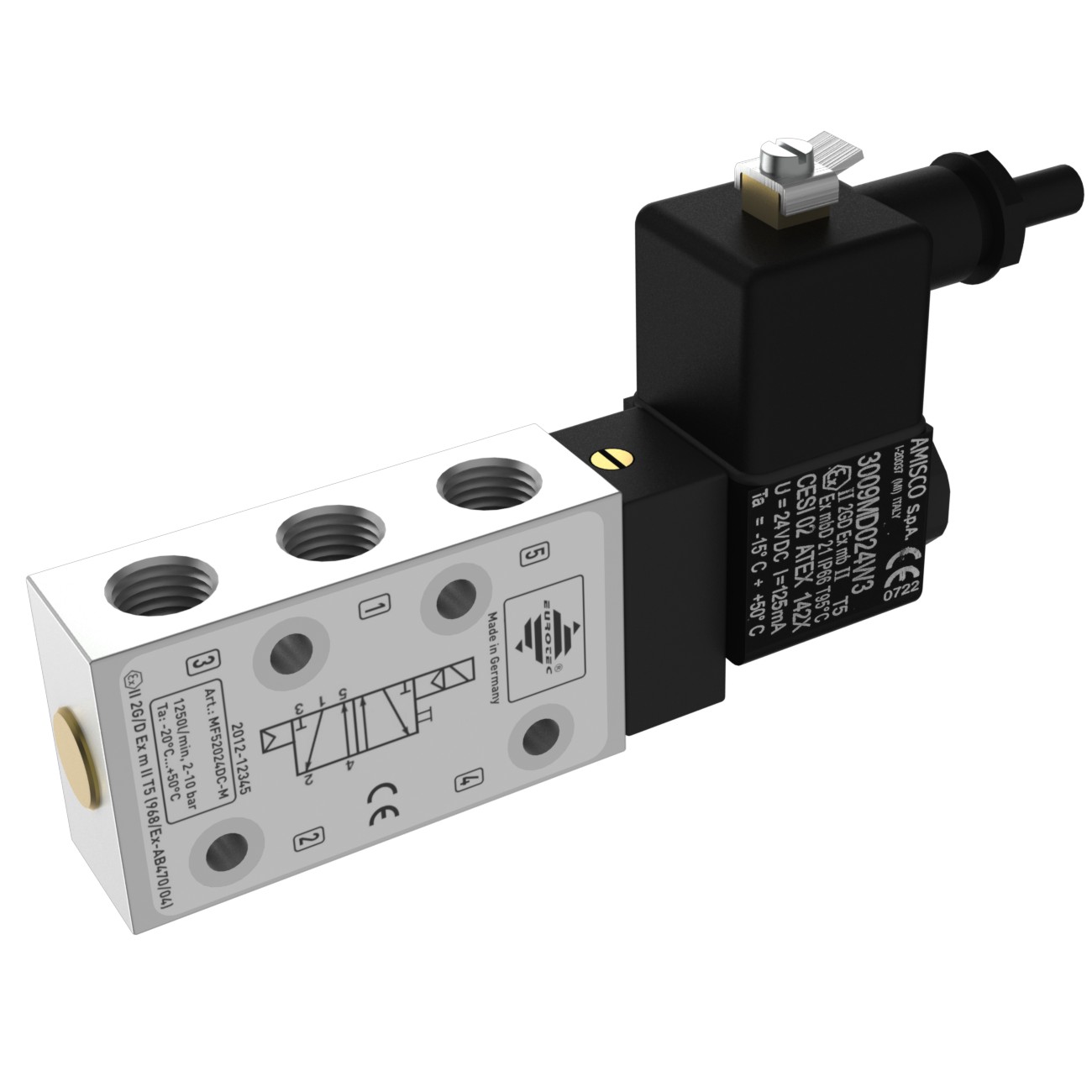

Solenoid valve In-line with 5/2 way function
Zone 1 / Zone 21

– Piston spool solenoid valve In-line, indirectly operated, 5/2 way,
with magnet coil and connector with 3m moulded cable
– All ports G1/4”
– Standard self-locking brass manual override
– Body anodised aluminum, with minimal external dimensions
– Stainless steel piston AISI 303, Sealings NBR, Stainless steel screws AISI 304
– Media: Cleaned and lubricated or non-lubricated compressed air with
a quality level 5 according to ISO 8573-1
– Application: Control of double acting pneumatic actuators in zones 1 and 21
– Protection type:
II 2G Ex mb IIC T5
II 2D Ex mbD 21 IP66 T95°C



Technical features:

Air entry: G 1/4”
Dimension: 7mm
Air pressure: 2-10 bar
Temperature: -15°C … +50°C
Enclosure: IP65
Voltage: DC: 12V, 24V
AC: 24V, 48V, 115V, 230V
Air flow: 1250 l/min
ATEX: Ex mb IIC T5
Ex mbD 21 IP66 T95°C
CESI 02 ATEX 142X
