MNI52-M

MNI52024DC-M

Product Description

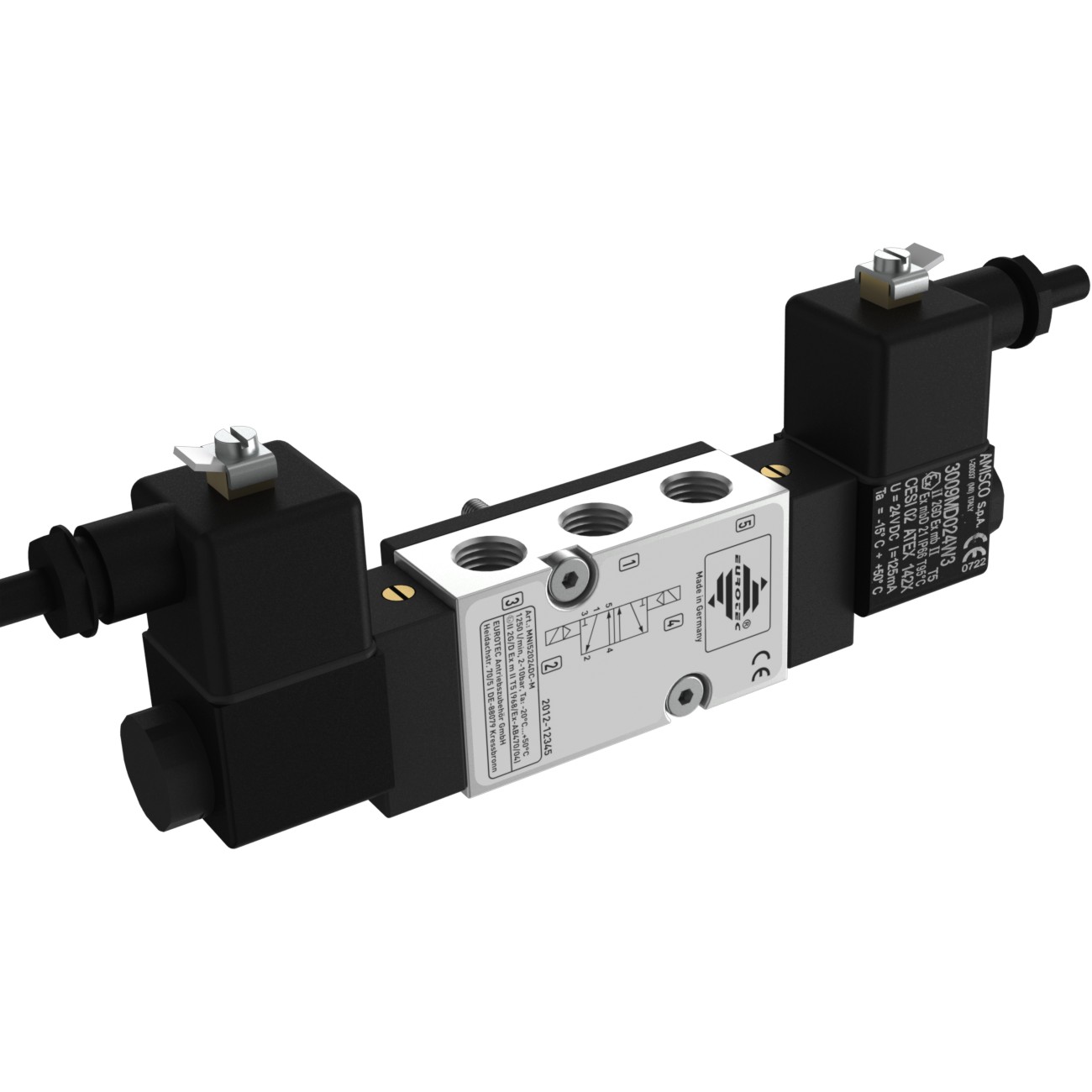

Solenoid valve NAMUR 5/2-ways
EX II 2G, 2D EEx m II T5
Zone 1 / Zone 21



-Solenoid valve NAMUR with 5/2-ways function with explosion proof
coil II2G/D, EEx m II T5 and encapsulated cable 3m long
– Dual stable version
– Manual override as standard, brass
– Body aluminum anodised, with minimal external dimensions
– Distance plate PA6
– Piston stainless steel AISI 303
– Sealings NBR
– Screws stainless steel AISI 304

Technical features:

Air entry: G 1/4”
Dimension: 7mm
Air pressure: 2-10 bar
Temperature: -15°C … +50°C
Enclosure: IP65
Voltage: DC: 12V, 24V
AC: 24V, 48V, 115V, 230V
Air flow: 1250 l/min
