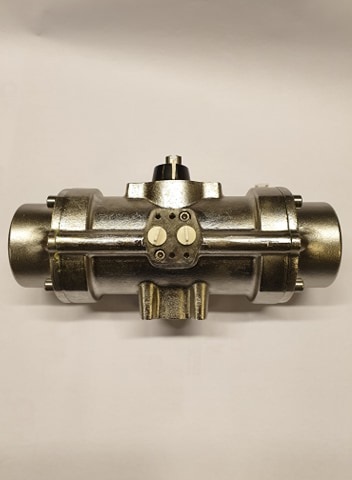

Prisma – PI20

Description

PNEUMATIC ACTUATORS IN STAINLESS STEEL



  • To pilot ball, butterfly and plug valves.
  • Specially designed for highly corrosive environments.
    Silicone free.
  • Fit for marine and underwater installations.
  • Normal working temperature: -32ºC to 90ºC
  • Models in spring return and double acting, torques from up to 470Nm at 6 bar.
  • Norms of construccion: ISO-5211, DIN-3337, VDE-3845, NAMUR.
  • May be equipped with limit switches, solenoid valves etc.

PI20 = F05-F07   –   22 mm   –    165,5 Nm (6bar)
