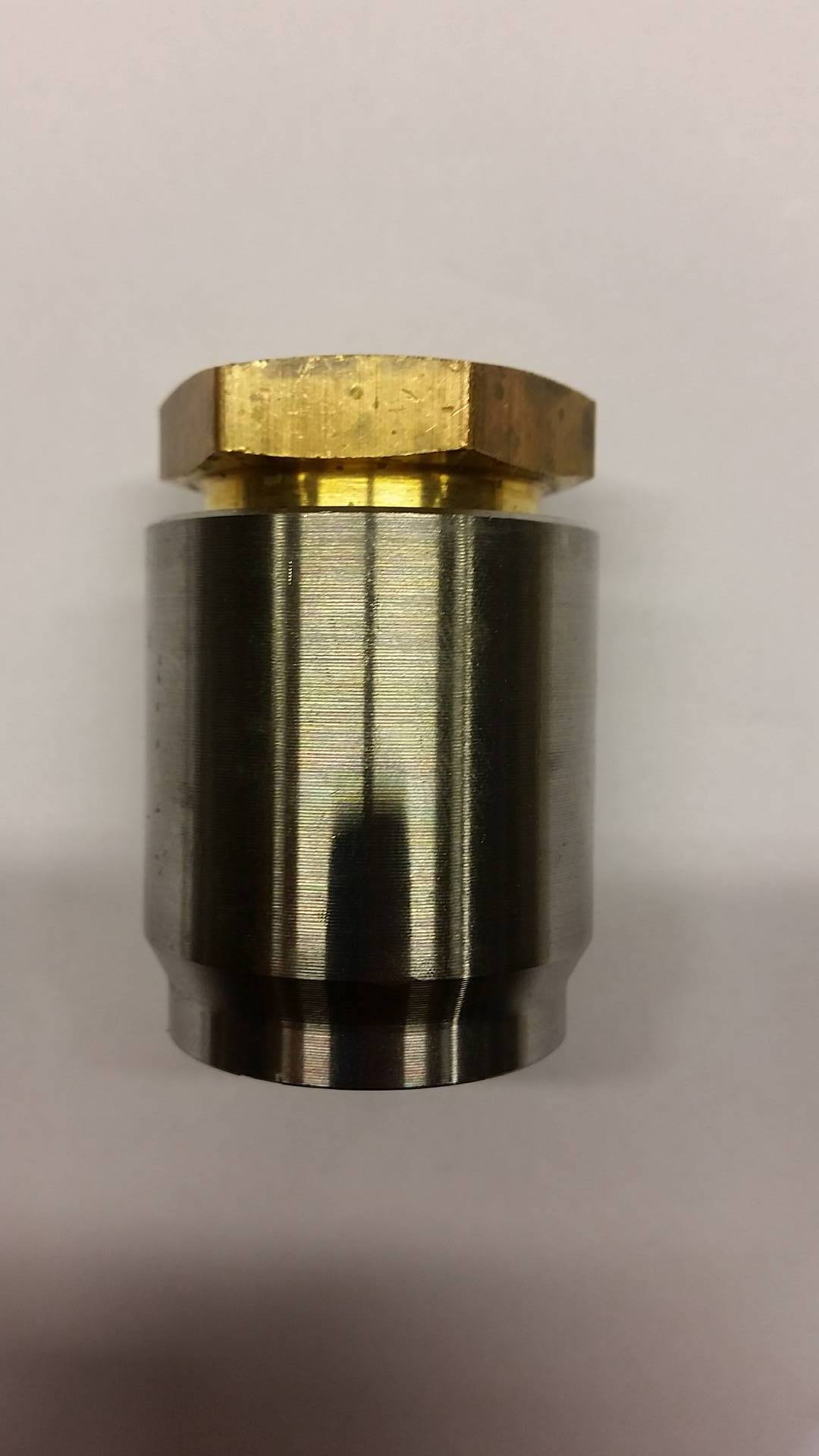

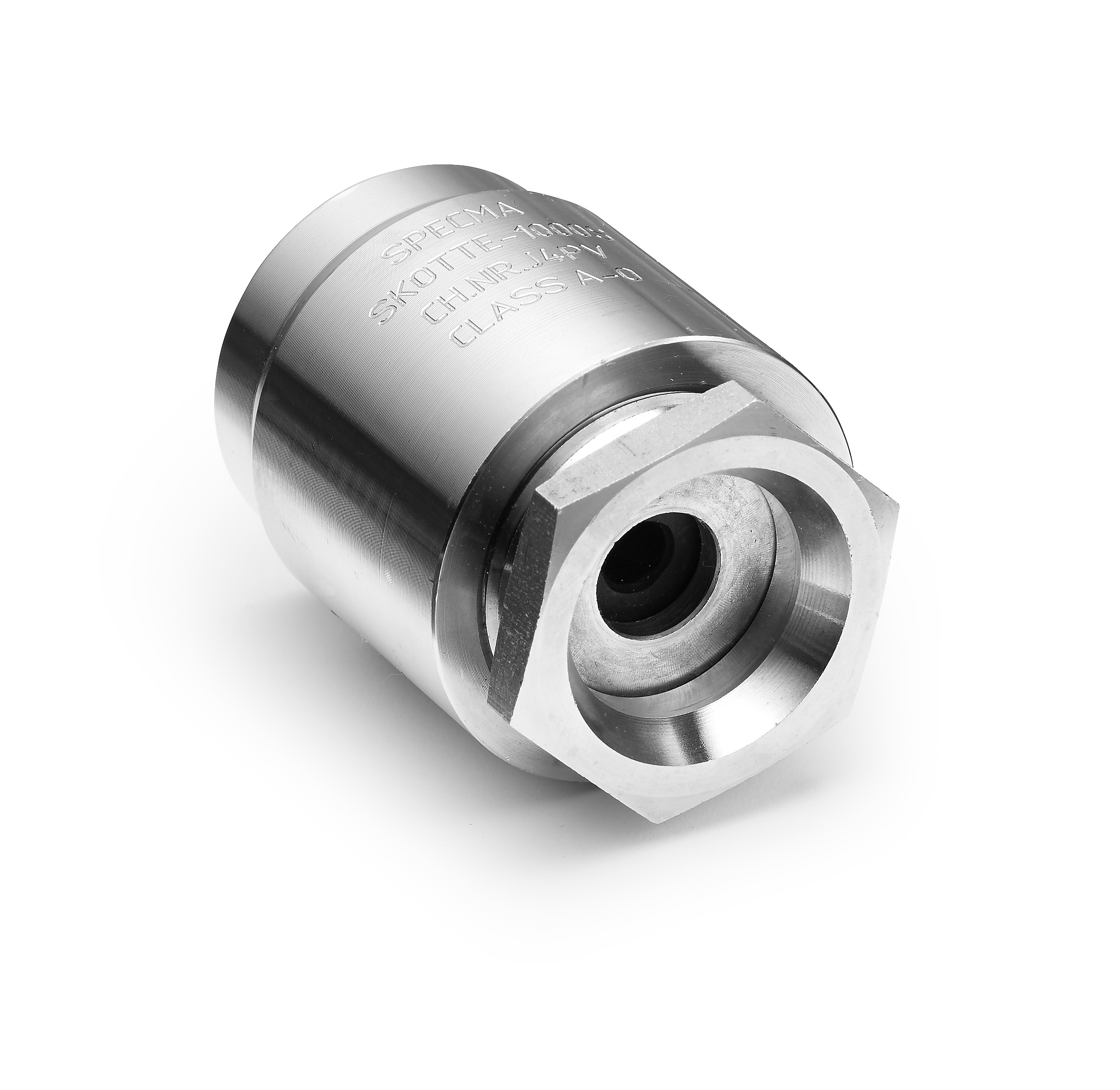

Skotten 500

Product Description



  • The skotten bulkhead fittings is used for cabling transducer cables through tank sides without causing any leakage.
  • The tightness of a tank is of greatest importance and thorough tests have proved that the skotten bulkhead fittings meet even the strictest requirements.

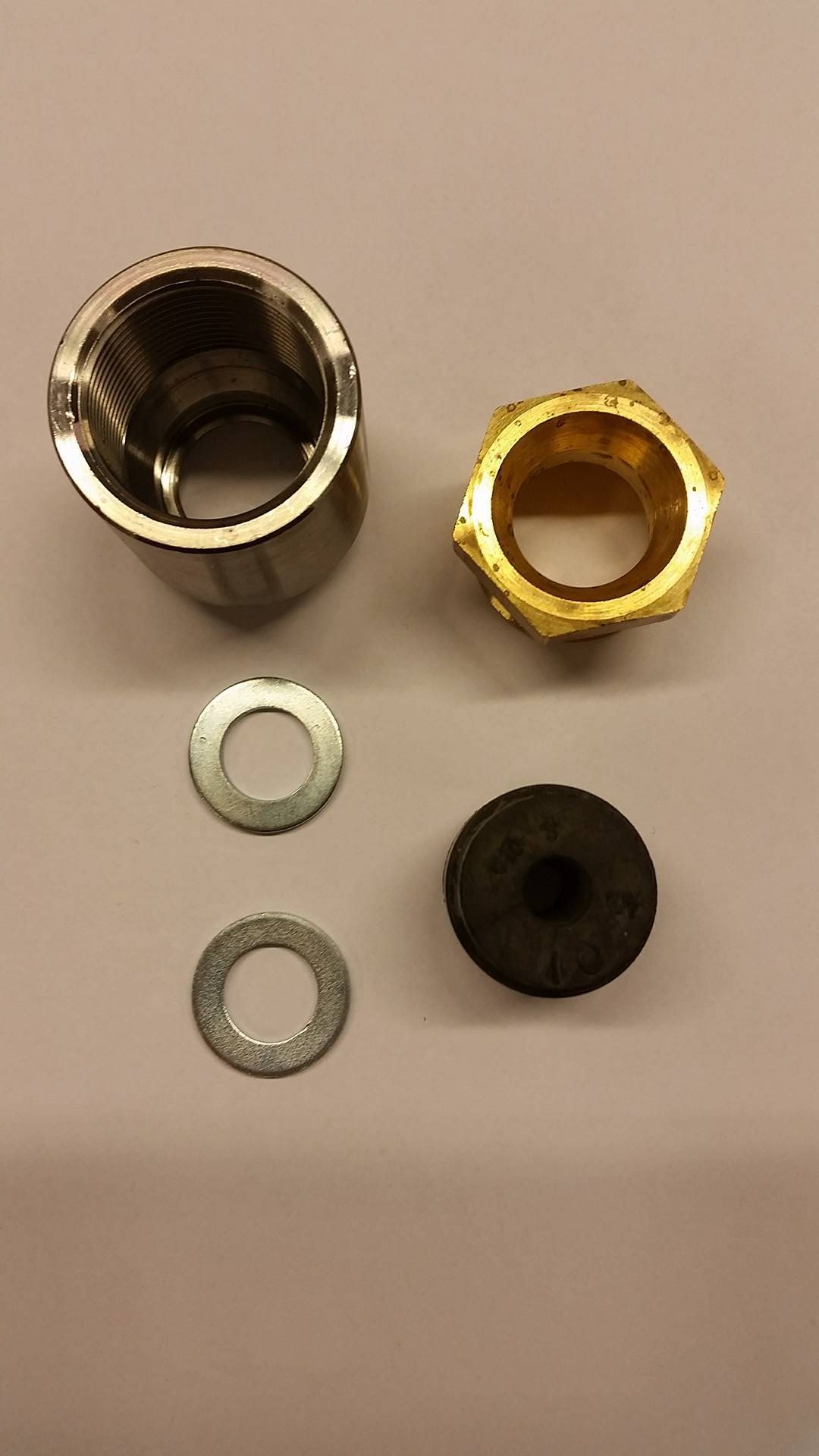

  • The rubber bushing is compressed between two washers stabilizing the bushing and protecting it from open fire.
  • The skotten bulkhead fitting is type approved by DNV for cable penetration in bulkheads or decks limited to a pressure of 16 bar and between gas safe and gas dangerous areas.
  • When a penetration system is requested for penetrating tanks, an approval may be given on a case by case basis
