ZC17.80/250

Description

SATAM ZC17-SERIES POSITIVE DISPLACEMENT METERS

Industrial metering units for delivery or reception of petroleum products such as gasoline, diesel, domestic fuel oil, kerosene and more.

Benefits:

  • Special design featuring an in-line manifold and a separate measuring chamber. This protects the measuring chamber from any eventual stress during installation.
  • High accuracy over a wide range of flow rates.
  • Very low repeatability error, less than 0.04%.
  • Low head loss: 0.5 bar max, or 0.3 bar for the ZC17-24 and 48 models.
  • Service and maintenance simplified by the use of many identical and interchangeable parts.
  • Simplicity of design; the only moving parts being the two sets of blades and the rotor. This keeps maintenance costs to a minimum.
  • Can be used for viscous products up to 800 Cps / 3850 SSU.
  • A wide range of accessories available to build metering units for your specific needs.

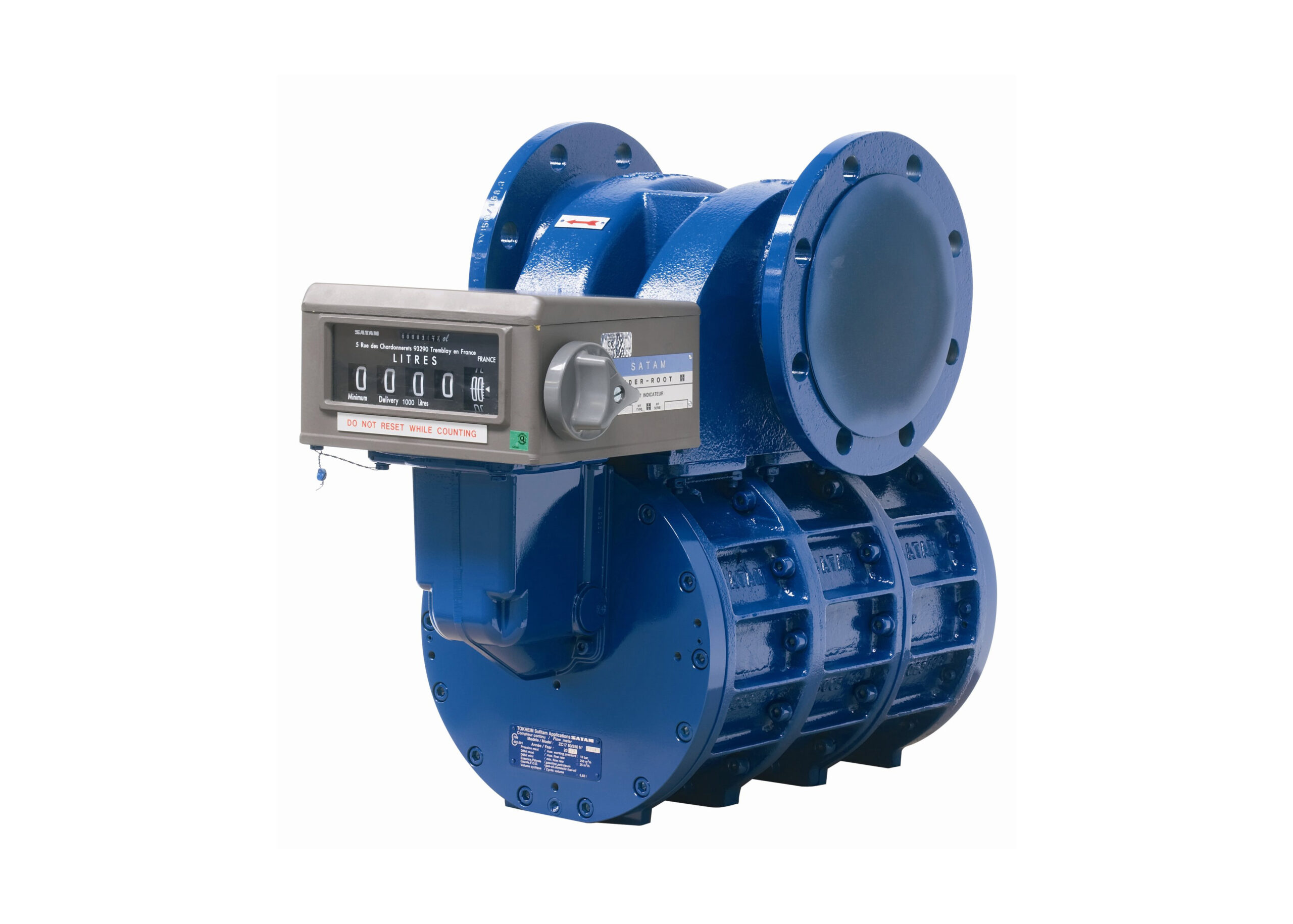

       ZC17.80/250

  • SATAM SAS type ZC17/250 flowmeter with Veeder Root reset register and Veeder Root pulse transmitter signal to IAS
  • Materials: House: NI.-Resist ASTM 436 Type II
    *End Cover: Steel
    *Wings: Carbon
  • Dimensions: DN150  – PN10/16
  • Flow range: 25-250  m3/h
  • Accuracy: +/- 0,2%
  • Repeatability: +/- 0,025%
  • Max Temperature: 120ºC
  • Max pressure: 10 bar
  • Output signal: Pulse transmitter type Veeder Root
  • Flowdirection: Right to left / Left to Right



Datasheets:

Please contact us if you need more data sheets for the Satam ZC17-series.
