KlaySann8000 – Level Sensor

By December 5, 2016 No Comments

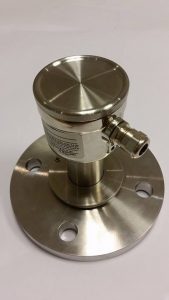

KlaySann8000

KlaySann 8000

  • STRONG DIAPHRAGM
  • ACCURACY 0,2% or 0,1%
  • ZERO/SPAN ADJUSTABLE
  • HIGH BURST PRESSURES
  • RUGGED AND COMPACT DESIGN
  • OUTPUT 4-20 mA
  • TEMPERATURE COMPENSATED
  • INTRINSICALLY SAFE ATEX II 1 G Ex ia IIC T4 Ga

The series 8000-SAN is a range of “All Stainless steel” pressure
/ Level transmitters with a strong “flush mounted diaphragm”
which can withstand high overpressures. Zero and span are
internally adjustable over a wide range and the accuracy is 0.2%
from adjusted span.

Typical applications are:
Level measurement on: Cargo tanks, Service tanks like fresh
water and waste water tanks, HFO tanks, Liquid mud / brine
tanks, etc.

Specifications series 8000:

Accuracy : 0,2% from adjusted span
Ranges : 0,08 bar to 350 bar
Output : 4-20 mA, 2-wire
Power supply : 12 to 36 Vdc (Exi: 13-26,5 Vdc)
Protection : IP66 (option: IP68)
Process temperature : -20ºC to + 100ºC
Wetted parts : AISI 316L (standard)
Gold plated diaphragm



Order code: 8000-San-E-F-Ex-G9-16-31

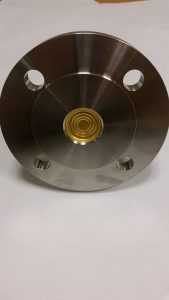

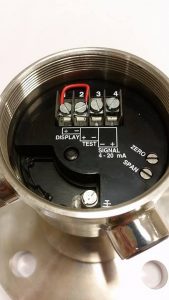

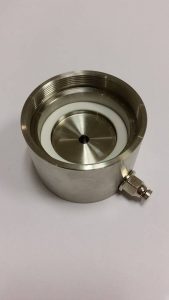

Klay_flange       Klay_connection       Klay_testcup
