MAS2600 – Level Sensor

By December 5, 2016 No Comments

mas2600

Advantages:

  • Titanium housing and diaphragm.
  • Resistant to sea water and chemicals.
  • Silicon strain gauge sensor.
  • EMI protected.
  • Interchangeable with existing transmitters.
  • Programmable from 0.2 to 35 mH²O
  • Strong, light and extremely corrosion resistant.



Description:

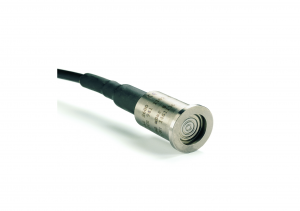

The MAS 2600 tank contents transmitter is an electronic based transmitter designed for tank contents measuring application.
The MAS 2600 is a 2-wire 4-20 mA level transmitter consisting of a transducer and an amplifier connected via a 6-core vented cable.
The transducer is fully welded, housed in titanium with a titanium diaphragm and is submersible (IP68).
The amplifier is housed in a sea water-resistant polyester casing (IP56).
The MAS 2600 is manufactured in 4 programmable ranges from

0-3.5 mH²O to 0-35 mH²O, and available with a built-in Pt100 sensor.

Application:

The MAS2600 has been developed for level measuring in ballast, oil, service and fresh water tanks as

well as tanks containing media which are not hostile to titanium.

Type Approvals:

DNV, GL, LRS, MRS, BV, RINA, KRS, ABS, PRS.
CE marked in accordance with EU directive
MAS2600-box-amplifier  MAS2600-box  InternalBracket  PoleEnd  Flange
PipeEnd skotten-bulkhead  Skotten

Normally in stock:

Sensors:

MAS2600-G20-05-0/00
MAS2600-G20-10-0/00
MAS2600-G20-15-0/00
MAS2600-G20-20-0/00



MAS2600-G30-05-0/00
MAS2600-G30-10-0/00
MAS2600-G30-15-0/00
MAS2600-G30-20-0/00



MAS2600-G40-05-0/00
MAS2600-G40-20-0/00



MAS2600-Box
MAS2600-Amplifier Card



Mounting equipment:

Internal Bracket
Pole End
Pipe End
DN25 Flange
DN40 Flange
DN50 Flange



For more information/datasheets check our product category, or contact us!
