Ball Valves  /  Control Valves – Stainless Steel

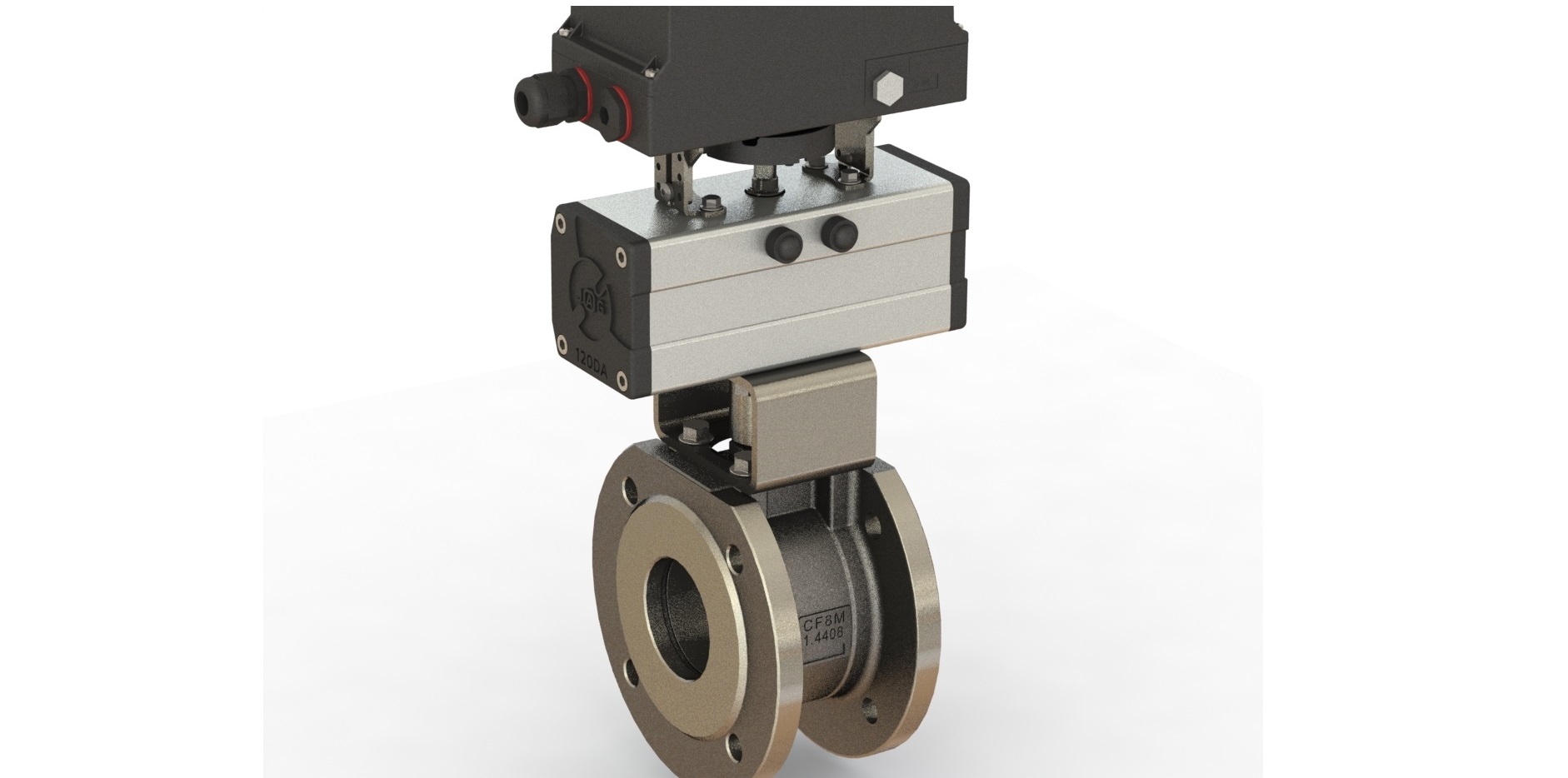

2-pieces flanged ball valve wafer type

Interface: ISO5211-DIN 3337
Connection: Flange DIN EN 1092-1-2003
Length: Not standardized
Bore: Full
Body: Stainless Steel AISI316 (or AISI304 on request)
Ball: Stainless Steel AISI316 (or AISI304 on request)
Sizes: DN15 to DN150
Seals: PTFE, Viton (others on request)
Temperature: -20ºC to +160ºC

Supplied with:
Pneumatic Actuator DA
Pneumatic Actuator SR
Manual Hand Level H
Or Valve only.



Any questions,  Please do not hesitate to contact us.
