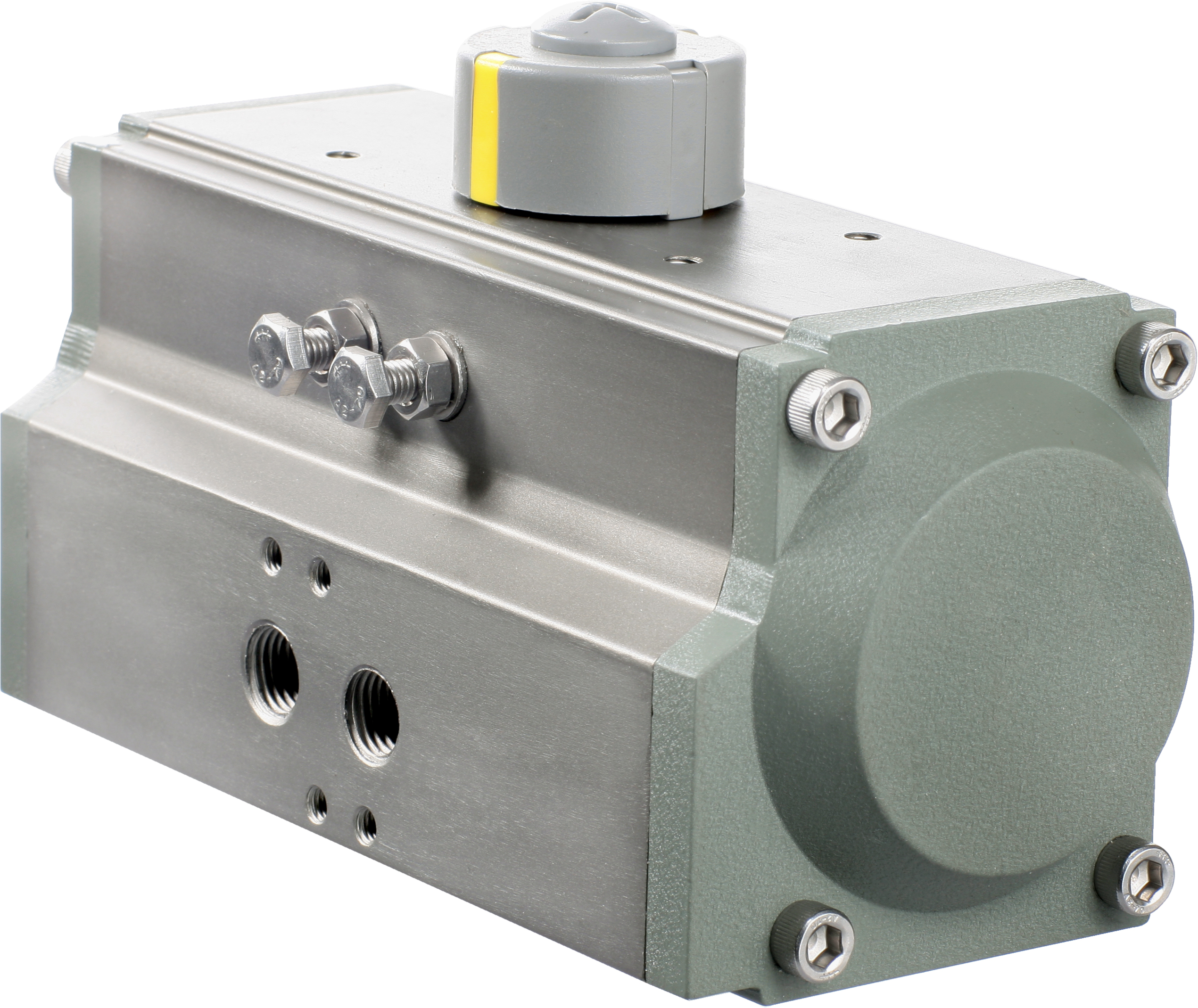

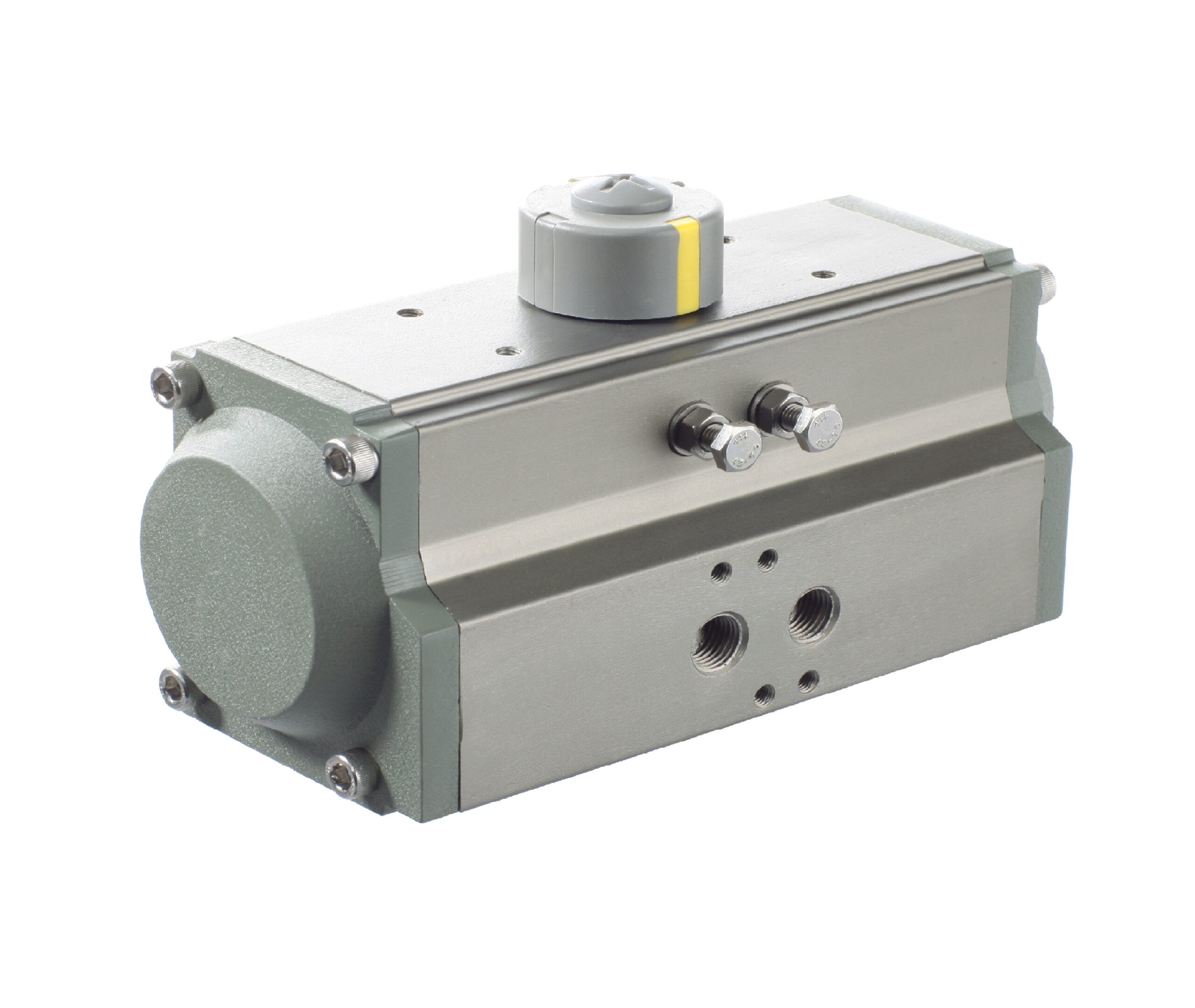

Haitima – HTD – Double Acting


Operation and Construction

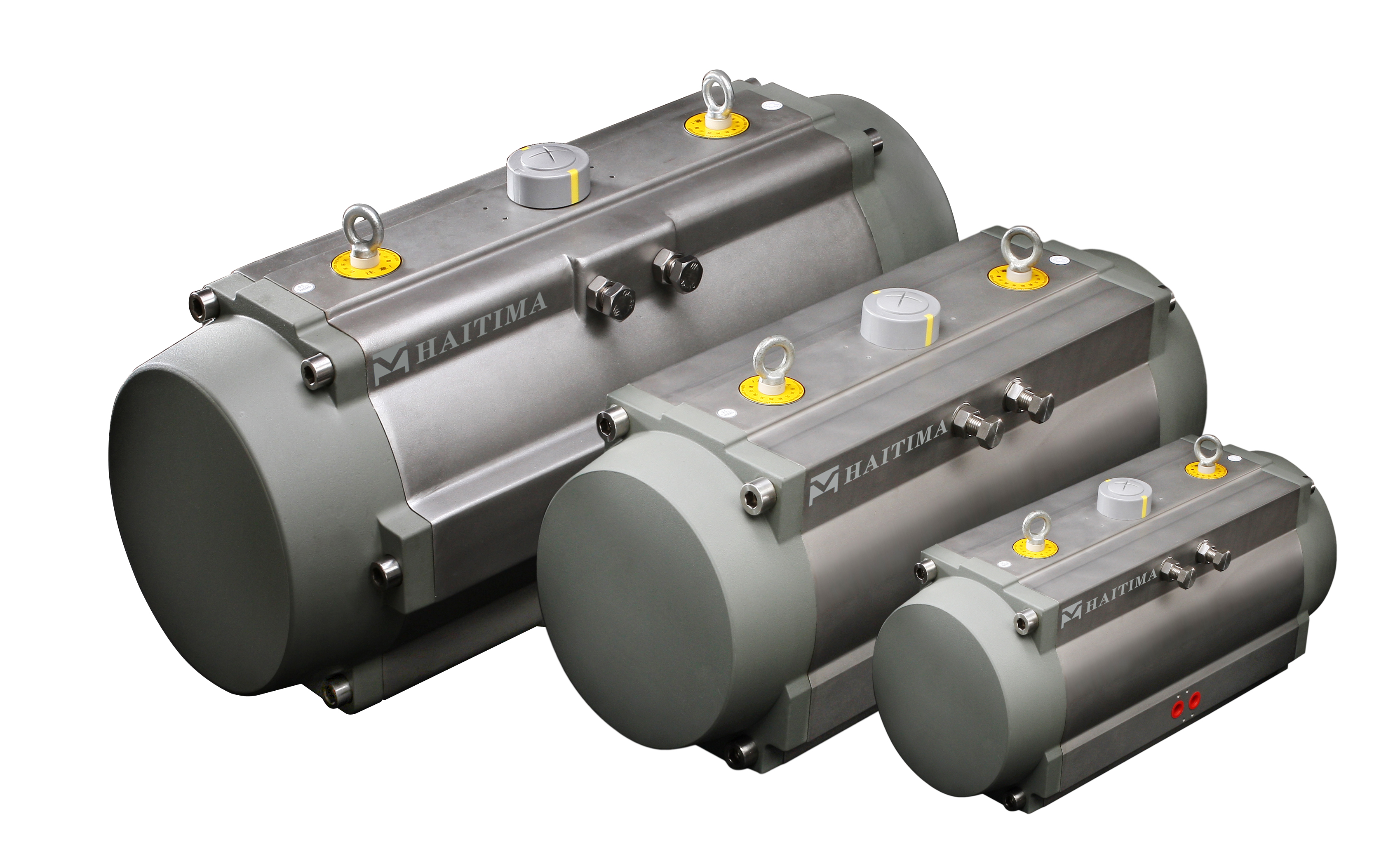

Haitima actuators are delivered as double acting (DA) as well as single acting (SR) types.
The return springs on SR type are mounted inside the actuator, and the overall size is equal for both types.
The mounting between valve and actuator is acc. to ISO 5211, and it is Namur connection for solenoid
valves / limit switch boxes.

Range of applications

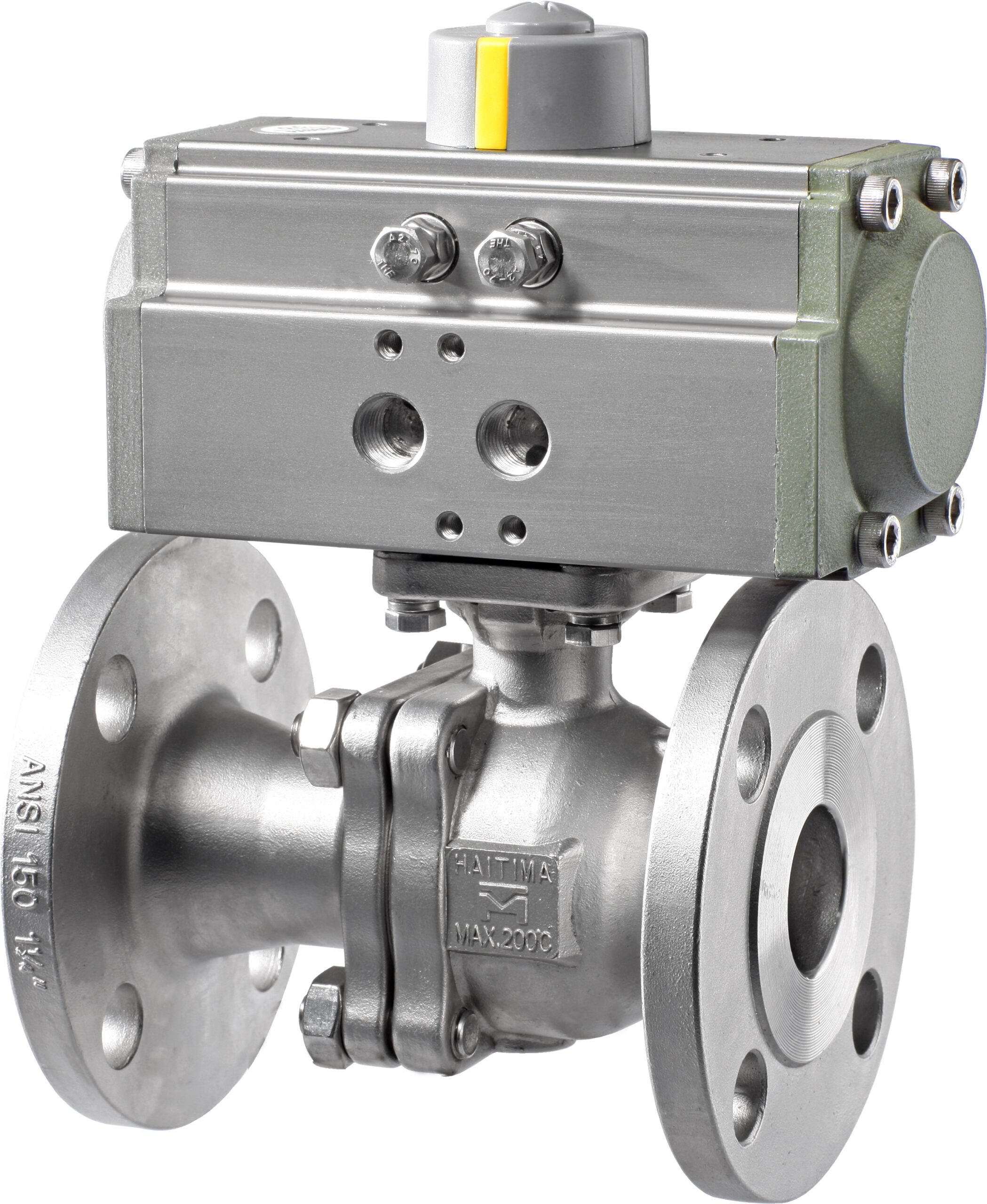

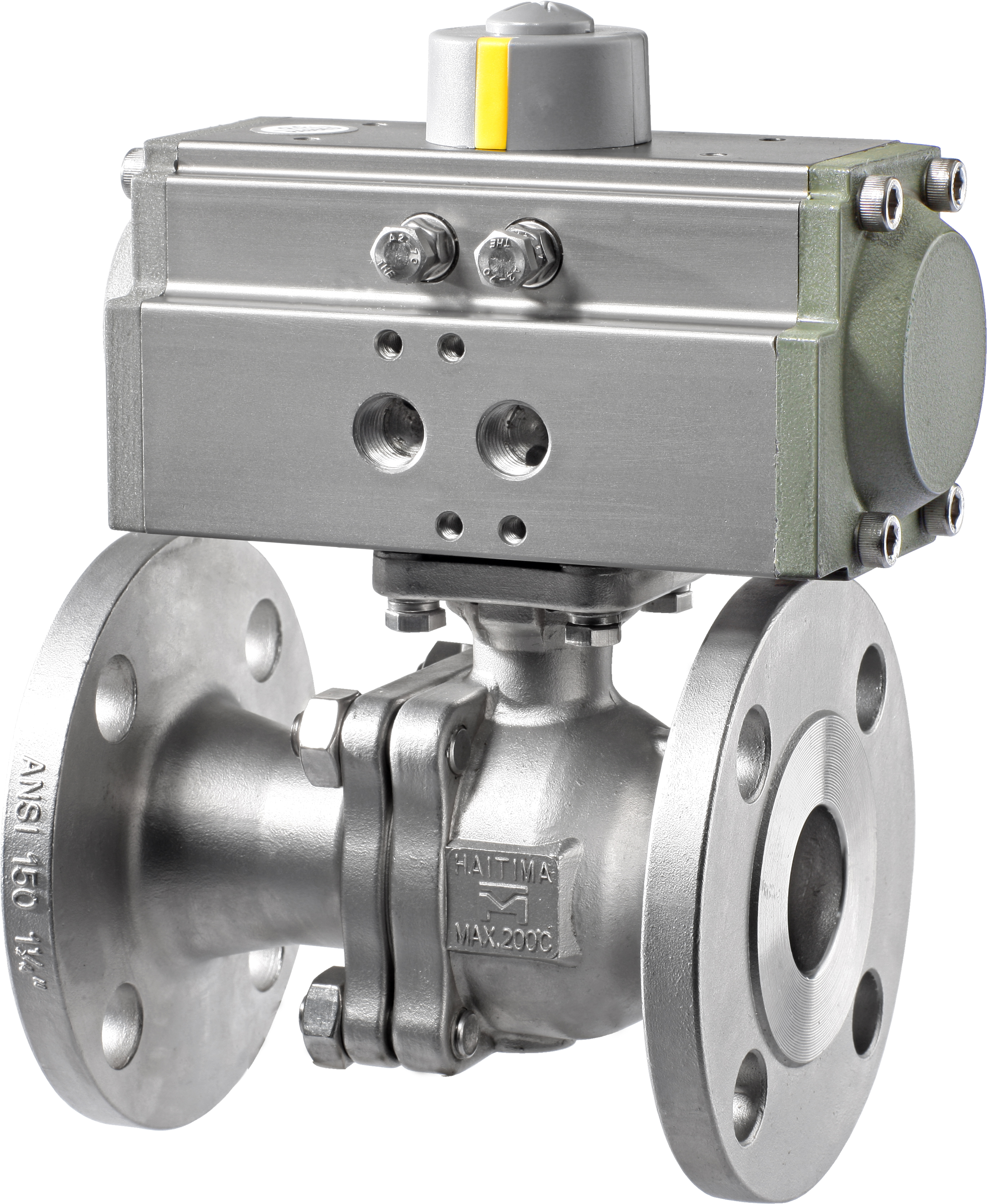

The actuator is designed for operating of quarter
turn valves i.e ball and butterfly valves.

Technical specification
Temperature area: -20 °C to +80 °C
Max working pressure: 10 bar
Operating supply: Clean air
Installation area: Indoor and outdoor

Body: Extruded
Piston: Aluminium
End pieces: Aluminium
Stem: Nickelplated Carbon Steel
Piston gaskets: Nylon 46
Spring (SR): Special steel

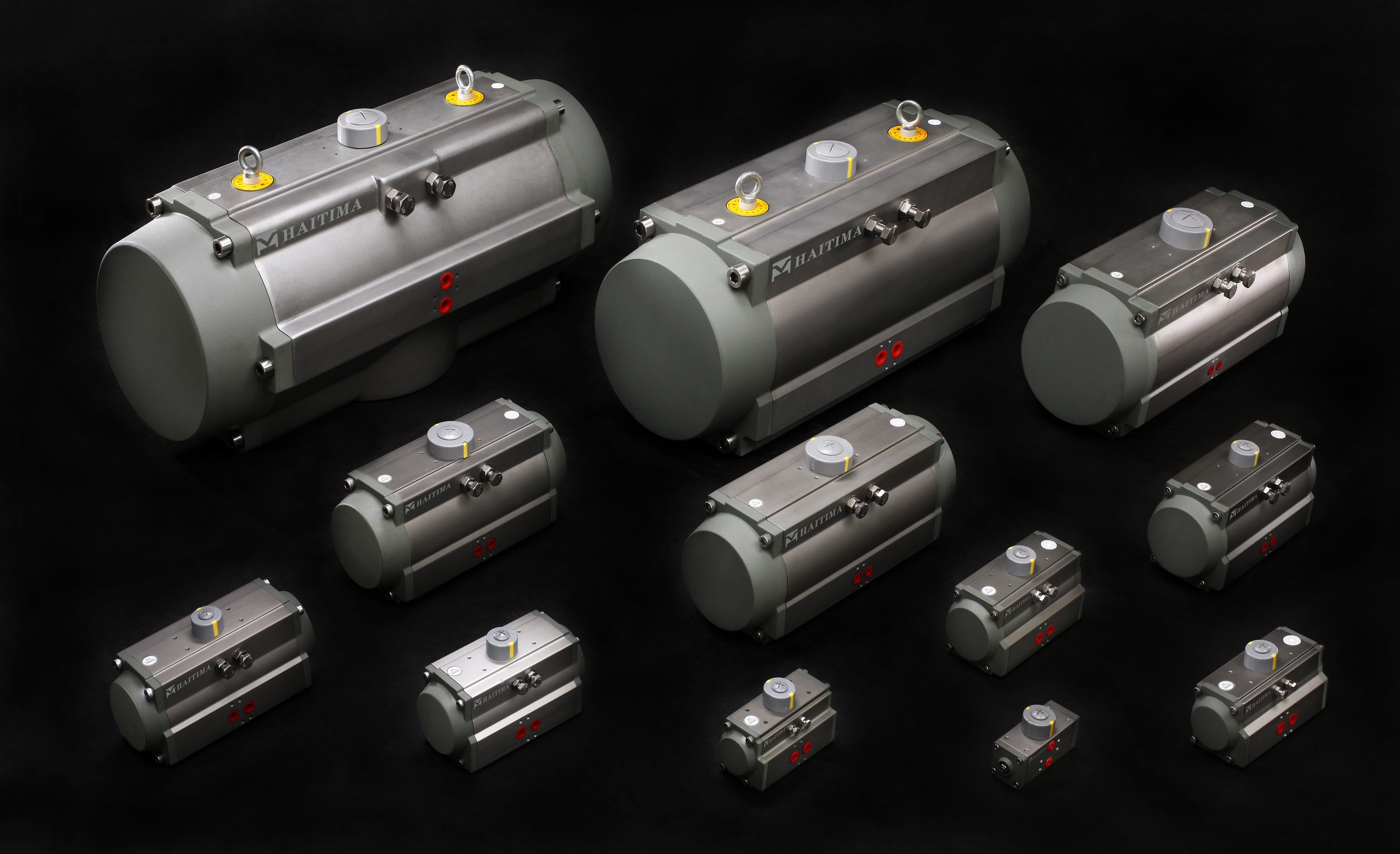

Model:            Moment nm:         Mounting Flange:          Square top:
HTD-052                  25                             F03/F05                               11mm
HTD-063                  44                             F05/F07                               14mm
HTD-083                  89                             F05/F07                               17mm
HTD-092                136                             F05/F07                               17mm
HTD-105                203                             F07/F10                               22mm
HTD-125                 349                            F07/F10                               22mm
HTD-140                 526                            F10/F12                               27mm
HTD-160                 802                            F10/F12                               27mm
HTD-190                1292                           F14                                        36mm
HTD-210                1776                           F14                                        36mm
HTD-240                2785                           F16                                        46mm
HTD-270                3916                           F16                                        46mm
