MF52024DC

Description

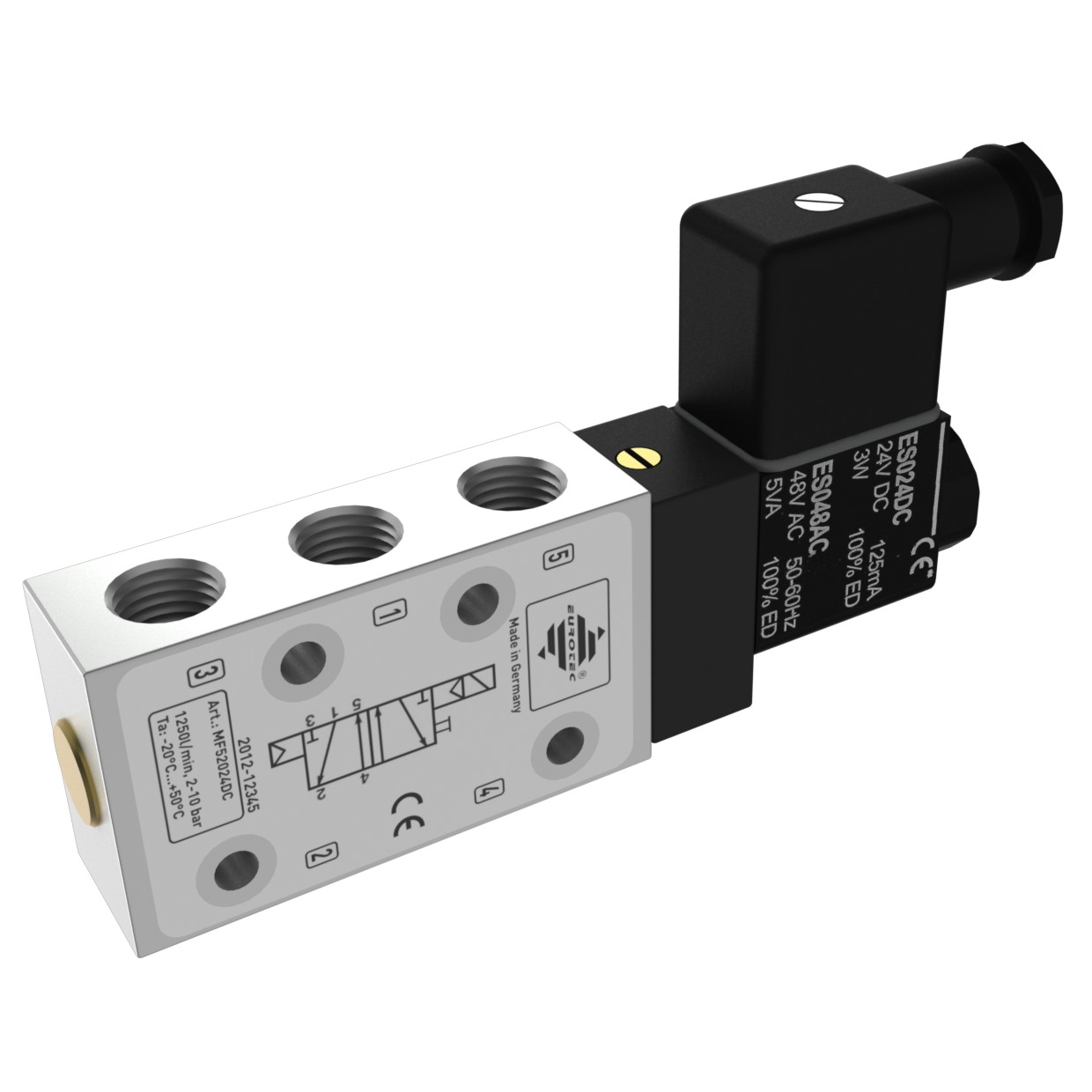

 Solenoid valve In-line with 5/2 or 3/2 way function.

– Piston spool solenoid valve In-line, indirectly operated, 5/2- or 3/2 way,
with magnet coil and connector with exit M16 for cable diameter 5-6mm
– All ports G1/4”
– Air spring return- Standard self-locking brass manual override
– Body anodised aluminum, with minimal external dimensions
– Stainless steel piston AISI 303
– Sealings NBR, Stainless steel screws AISI 304
– Media: Cleaned and lubricated or non-lubricated compressed air with
a quality level 5 according to ISO 8573-1
– Application: Control of spring return or double acting pneumatic actuators



Technical features:

Air entry: G 1/4″
Dimension: 7mm
Air pressure: 2-10bar
Temperature: -20°C — +50°C
Enclosure: IP65
Voltage:
DC: 12V, 24V, 110V
AC: 24V, 48V, 115V, 230V
Air flow: 1250l / min
