Test Calibrator Kit for MAS2600

Description

MAS2600 PRESSURE CALIBRATOR KIT

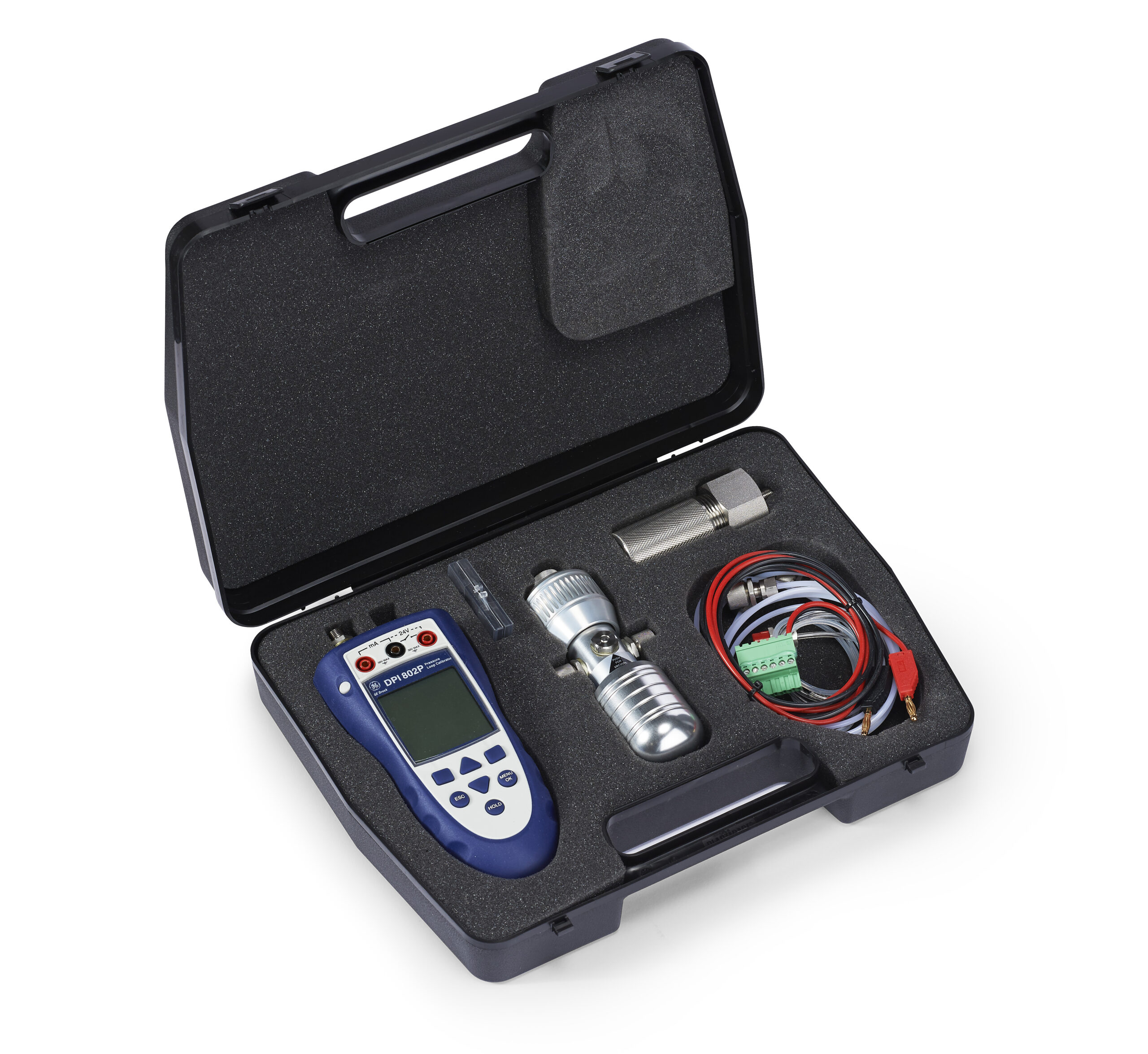

The MAS2600 Pressure Calibration KIT consists of all you need to make highly accurate pressure calibrations and is supplied in a carry case.
The Calibrator KIT includes the DPI802P Calibrator, PV210 Hand Pump, Carry case, MAS2600 test cup and a MAS2600 amplifier connector.

DPI802P Calibrator

Loop calibrator, an advanced, robust and easy to use hand-held instrument

  • Pressure indicator.
  • mA measure with 24V loop power.
  • Switch test.
  • Leak test.
  • HART resistor.
  • Large dual display with back-light.
  • Range: -1 to 3,5 bar.
  • Accuracy: 0.01% FS.
  • Power supply: 3 x AA Alkaline batteries.
  • Duration: >50 hours (measurement) >10 hours (24V source at 12.5 mA).



Article: 8-DPI802P





PV210 Hand Pump

The PV210 low pressure pneumatic hand pump is fully portable and easy to use. This precision unit gives pneumatic pressure and vacuum.

  • Range: -0.9 to 3.0 bar.

Article: 8-PV210





Datasheets:
