Product Description

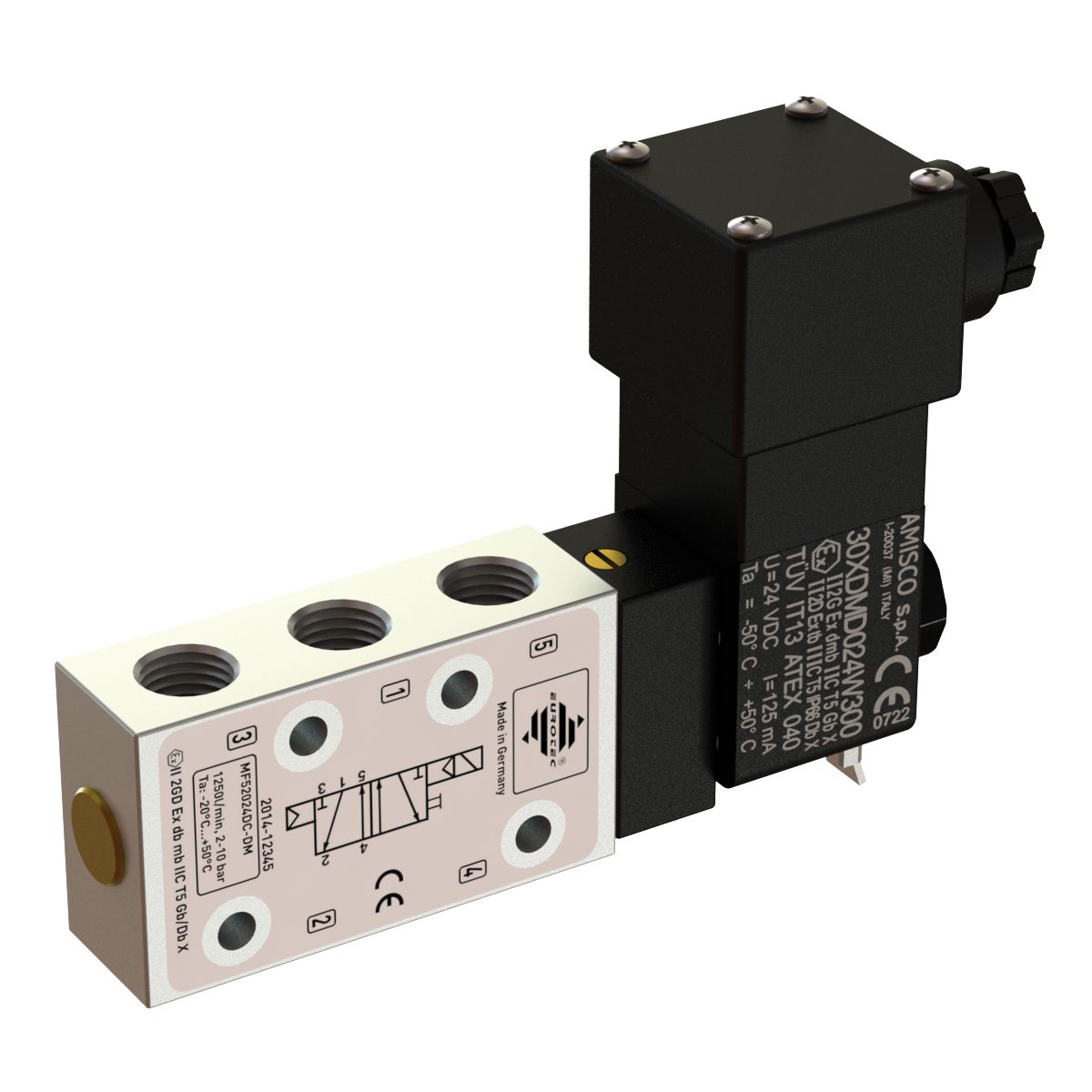

Solenoid valve in-line with 5/2 or 3/2 way function

– Piston spool solenoid valve In-line, indirectly operated, 5/2 or 3/2way
with magnet coil and connector with exit PG9 for cable diameter 6-8mm
– All ports G1/4″
-Standard self-locking brass manual override
-Body anodised aluminum, with minimal external dimensions
-Stainless steel piston AISI303
-Sealings NBR, Stainless steel screws AISI304
-Media: Cleaned and lubricated or non-lubricated compressed air with a quality level 5 according to ISO8573-1
-Application: Control of spring return or double acting pneumatic actuators in zones 1 and 2
-Protection type:
EX|| 2G Ex db mb IIC T5 Gb X
EX|| 2D Ex tb IIIC T95ยบC IP66 Db X
