EFE2M01-551-ED

Description

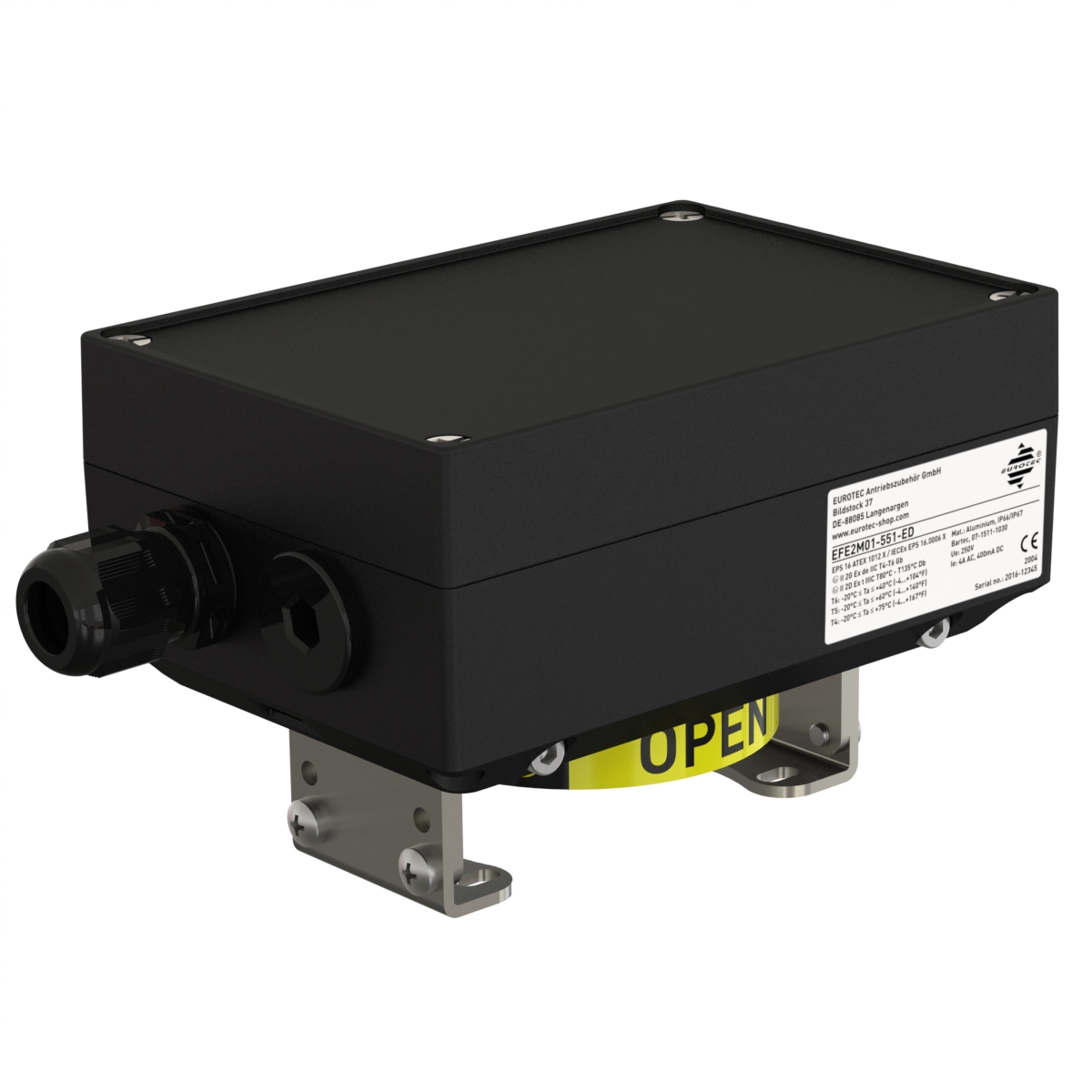

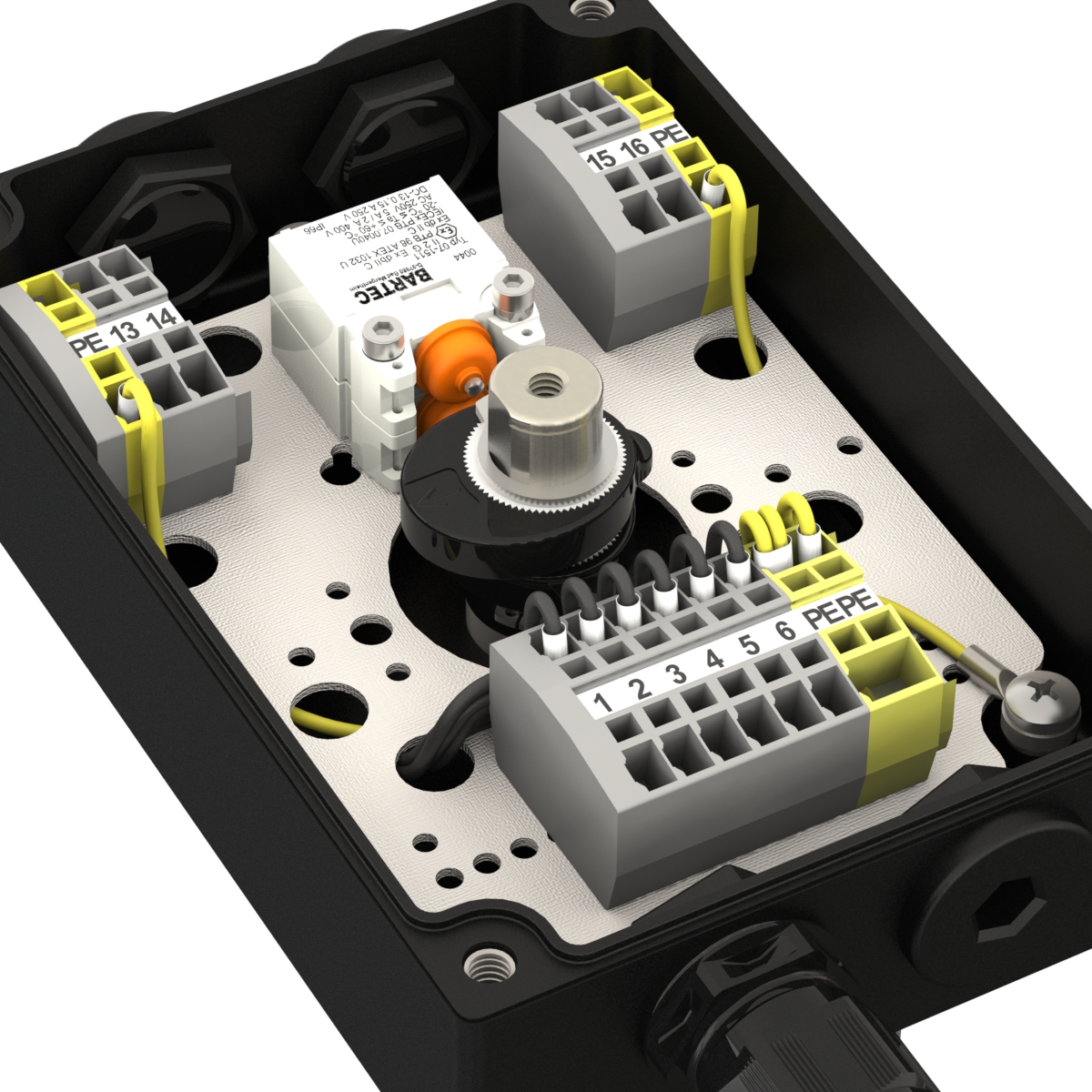

Flex box with mechanical Ex d switches, SPDT, NO./NC.



Technical features:

Producer switch: Bartec
Switch type: 07-1511-1030
Function: N.O. / N.C.
Voltage, Current consumption:
DC: 24V, 150mA
AC: 250V, 4A

SIL Level: SIL 1-3 (IEC 61508:2010)
Ambient temperature:
T6/T80°C: -20°C … +40°C
T5/T95°C: -20°C … +60°C
ATEX/IECEx:
EX II 2G Ex de IIC T5-T6 Gb
EX II 2D Ex t IIIC T80°C-T95°C Db
CE Type examination certificate:
EPS 16 ATEX 1012 X
IECEx EPS 16.0006 X
Ex zone: Zone 1, Zone 21



Replacement for: EVE2M01-ED-DB1
