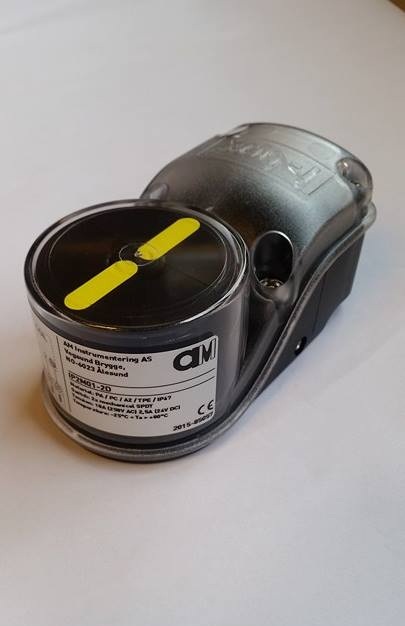

I-Box 2D


Compact limit switch box

– Direct mounting without mounting bracket on actuators with a
hole spacing 80 x 30mm and a shaft height of 20 or 30mm
– New, easy and time-saving fastening system
– Very compact limit switch box polyamide PA6

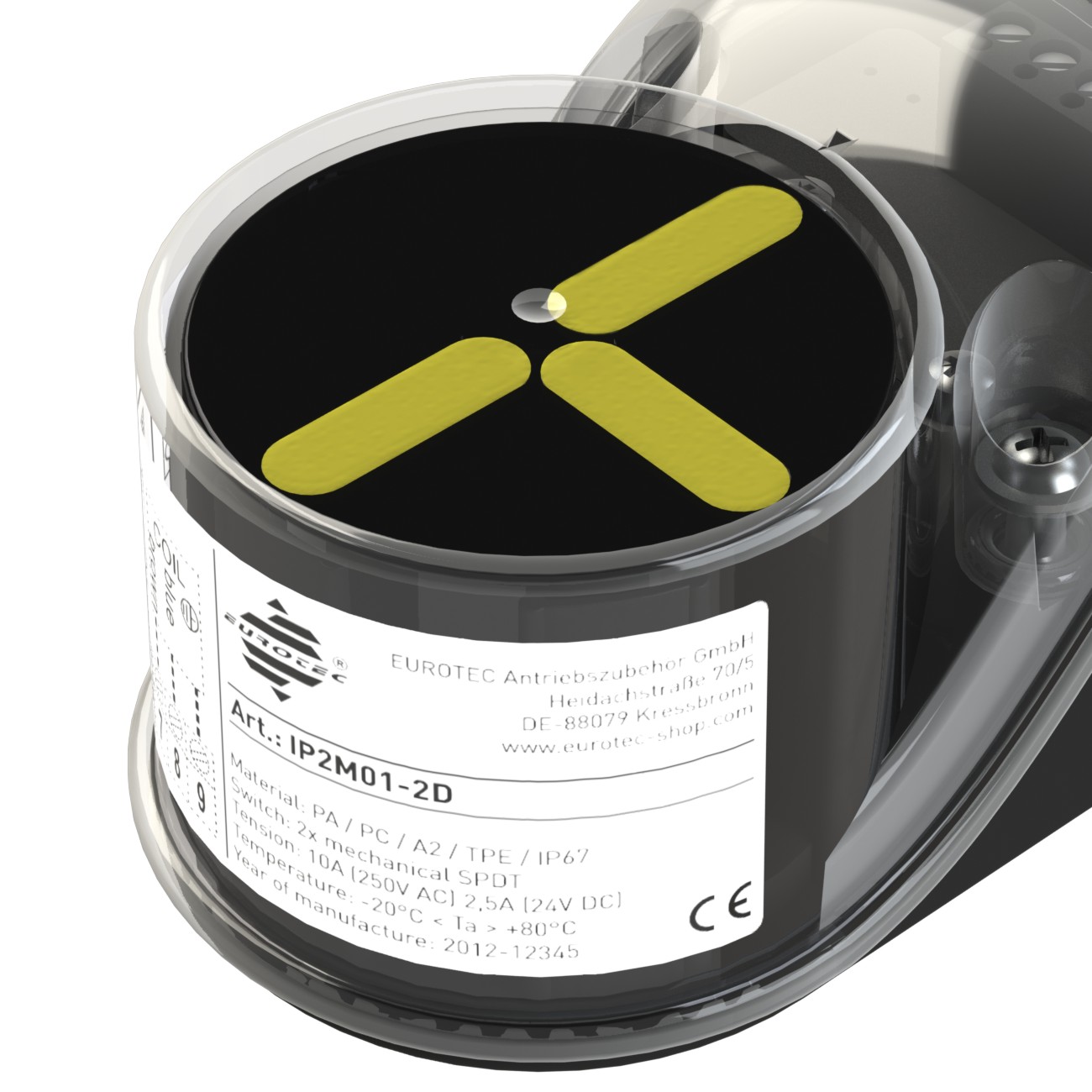

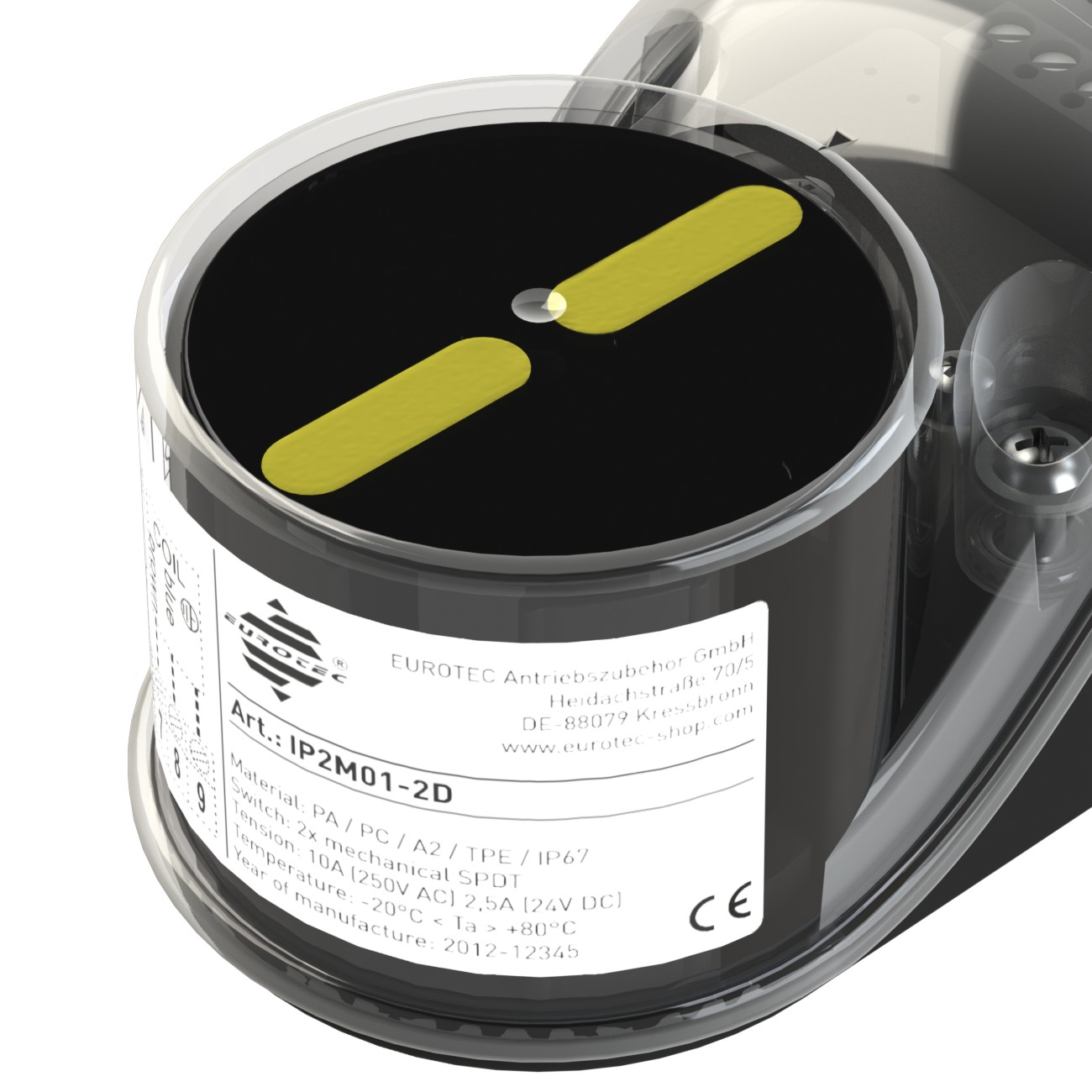

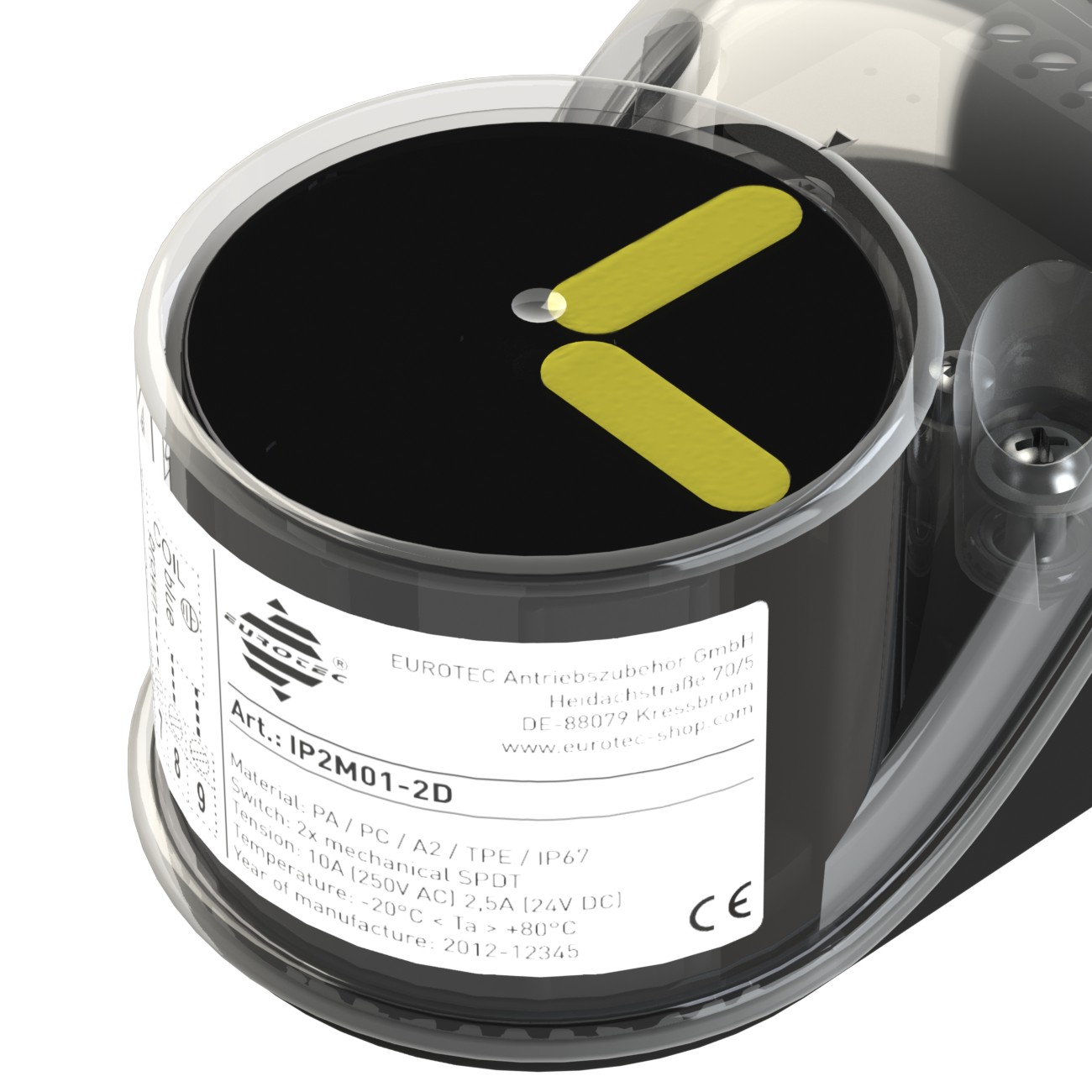

– Transparent polycarbonate cover with integrated large OPEN-COSED indicator
– Enclosure IP67 according to DIN EN 60529
– Cable gland M20x1,5 black (for cable Ø 6-12mm)
– Sealings TPE and NBR, Screws AISI 304, Shaft polyamide PA6
– Other colours of casing available on request
