Lidec L20D, 75mm – 120mm – 200mm

Categories: ,


The Lidec level switch type L20D, designed for maritime applications, is based on the wave propagation in metal principle.
This Concept is completely static, without vibrations or moving parts. The reliability of the device is ensured by a self-monitoring function which signals electronic or transducer failures. Lidec L20D is designed to be installed horizontally (or vertically). Also, it requires no calibration as not influenced by type of fluid.

Technical data:

  • Accuracy: ± 2mm
  • Pressure: 25 bars
  • Protection class: IP65
  • Intrinsically safe Cenelec EEX ia IIC T6
  • Power supply: 18 to 36 VDC (28 VDC max. for I.S.)
  • Operating temperatures:
    – ambient temperature: – 25 °C +70°C
    – liquid temperature: – 40 °C +150°C


Special features:

  • Head: Aluminium
  • Probe: Stainless steel 316L

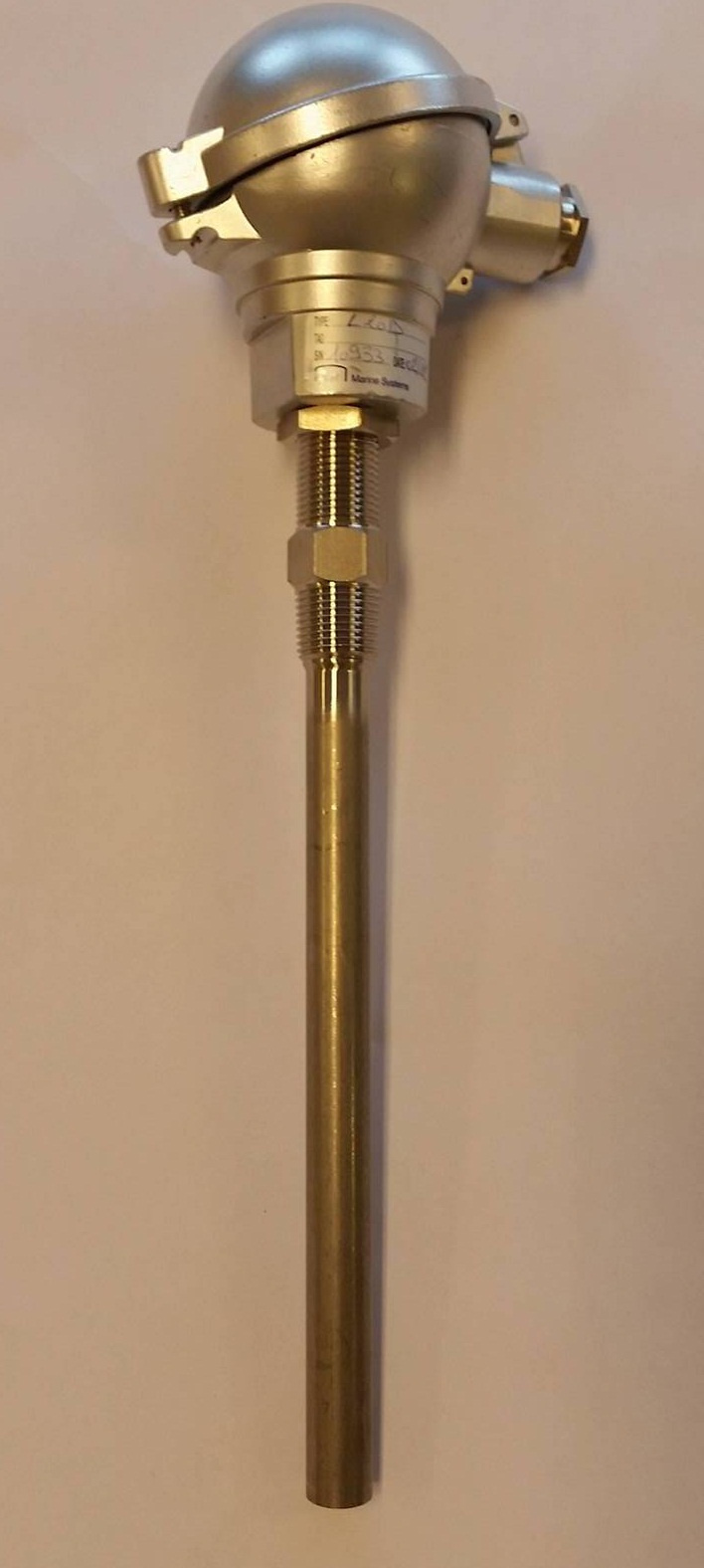

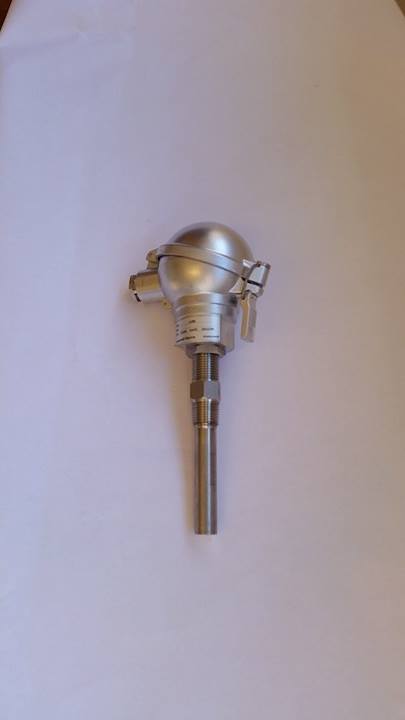

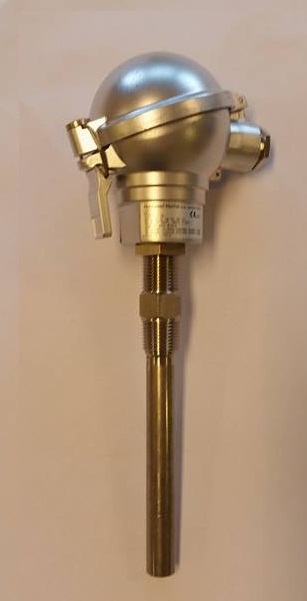

  • Lengths: L= 75, 120 or 200mm
  • Fitting, 1/2″ BSP
  • Current output:
    L20D: in liquid 6 mA
    outside liquid 18 mA
